  13. Lever Lockset, Mechanical, Privacy, Grade 2

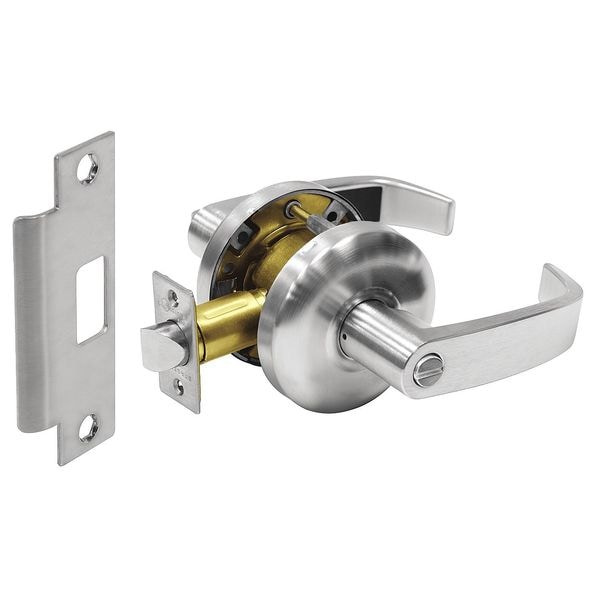

Sargent Lever Lockset, Mechanical, Privacy, Grade 2 28-65U65 KL 26D - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # 28-65U65 KL 26D

  • Zoro # G4629624

product price: $181.63
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28-65U65 KL 26D
Zoro #
G4629624
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Maximum
1 3/4 in
Strike Plate Thickness
1/16 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
Series
6500
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Strike Type
Curved Lip
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Handle Material
Brass, Cast Steel, Stainless Steel, Wrought
Ligature Resistant
No
Style
6500 Right Angle
Lockset Performance Strength
Heavy Duty
Key Type
Not Keyed
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Finish
Satin Chrome
Lockset Fire Rating
3 hr
Lockset Grade
2
Standards
ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
ADA Compliant
Yes
Mortise/Cylindrical
Cylindrical
Number of Keys
2
Number of Pins
6; 7
Keying
Keyed Different
Fire Rated
3 hr.
Keyway Type
None
Visual Indicator Message
No Message
Material
Wrought and Cast Steel, Brass, Stainless Steel
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Cylindrical
Case Material
Steel and Zinc
Function
Privacy
ANSI/BHMA Finish
Satin Chromium-Plated
ANSI Grade
2
Hand Orientation
Non-Handed
Includes Core
Core Not Included
Locking/Unlocking Access - Inside
Push Button
Lockset Type
Mechanical
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr
Trim Plate Shape
Round
Lockset Function ANSI Code
F76A
Lockset Style
6500 Lever
Locking/Unlocking Access - Outside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
Knob/Handle Material
Brass, Cast Steel, Stainless Steel
Performance Grade
2

Description

Lever Lockset, Cylindrical, Institutional, 6500 Series, Right Angle Style, Satin Chrome Finish, Function Privacy, Grade 2, Material Wrought and Cast Steel, Brass, Stainless Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different, Standards Certified ANSI A156.2 Series 4000 Grade 1, UL and CSA Listed, ADA, California Administrative Code Title 19 and 24
