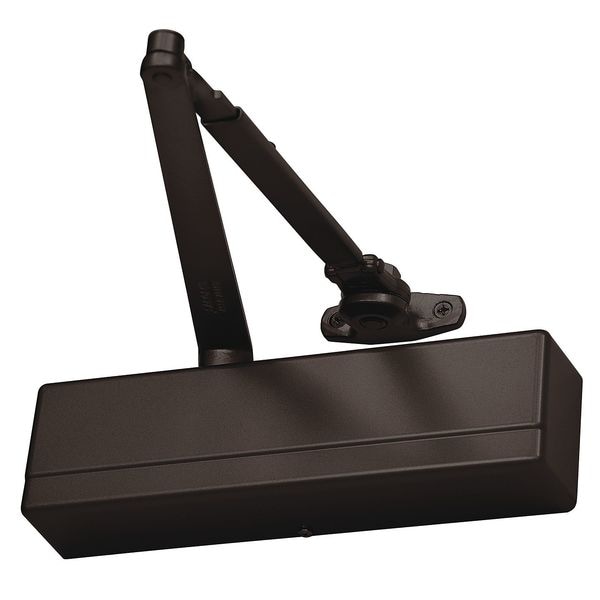

  6. Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Bronze
Sargent Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Bronze 1431-UH TB EB - main

Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Bronze

  • Mfr # 1431-UH TB EB

  • Zoro # G4630814

product price:  $463.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 1431
Closer Type
Hold Open
Color
Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1431-UH TB EB
Zoro #
G4630814
UPC #
-
Country of Origin
United States

Dimensions

Housing Depth
2-1/4"
Housing Height
3-3/8"
Housing Length
12"
Exterior Door Width
48 in
Spring Size
Adjustable 1 to 6
Interior Door Width
60 in
Length Between Mounting Holes
11 1/8 in
Exterior Door Width - Maximum
48 in
Height Between Mounting Holes
1 in
Interior Door Width - Maximum
60 in
Spring Size - Minimum
1
Spring Size - Maximum
6

Details

Item
Door Closer
Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 1431
Closer Type
Hold Open
Color
Bronze
Finish
Bronze Powder Coated
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Aluminum Silicon Alloy
Arm Material
Die Cast Aluminum
Projection from Wall
2 1/4 in
Arm Type
Parallel
Ligature Resistant
No
Includes
Machine Screws and Self Tapping Screws
Standards
ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed
ADA Compliant
Yes
Max. Door Opening
90 Degrees to 160 Degrees
Category Type
Parallel Arm
Door Handing
Non-Handed
Features
Corrosion-Resistant, Impact-Resistant
Series
1431
Type
Interior/Exterior Institutional
Hand
NH
Mounting Style
Universal, Top Jamb and Standard
Closer Cycles
25,000,000
Performance Grade
1
Interior/Exterior Use
Interior/Exterior
UL Fire Rating
UL10C
Operation Style
Manual
Door Opening - Maximum
160 Degrees
Projection
2 1/4 in
ANSI/BHMA Finish
Dark Bronze Painted
Door Opening - Minimum
90 Degrees
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Spring Type
Adjustable
Compatible Brand
Sargent
Product Type
Door Closer

Description

Door Closer, Sargent 1431 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed, ADA Compliant Yes, Finish Dark Bronze Painted, Arm Material Die Cast Aluminum, Arm Type Parallel, Exterior Door Width 48 in
