  6. Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Gray

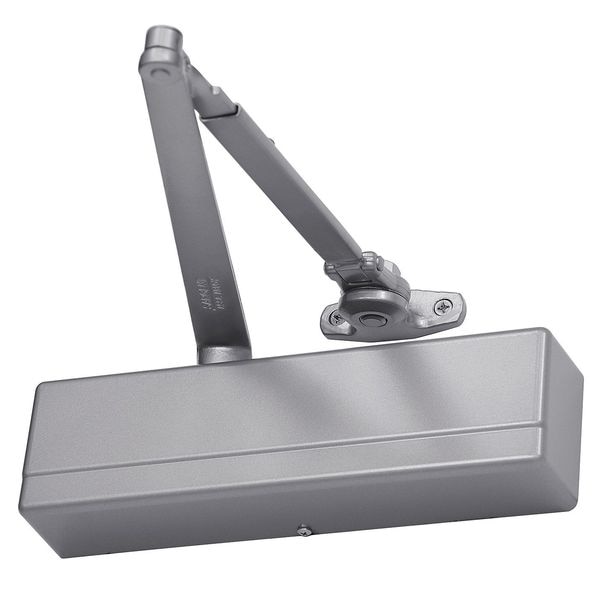

Sargent Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Gray 1431-UH TB EN - main

Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior, Gray

  • Mfr # 1431-UH TB EN

  • Zoro # G4628574

product price:  $463.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 1431
Closer Type
Hold Open
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1431-UH TB EN
Zoro #
G4628574
UPC #
602880000134
Country of Origin
United States

Dimensions

Housing Depth
2-1/4"
Housing Height
3-3/8"
Housing Length
12"
Interior Door Width
60 in
Exterior Door Width
48 in
Spring Size
Adjustable 1 to 6
Spring Size - Maximum
6
Height Between Mounting Holes
1 in
Interior Door Width - Maximum
60 in
Spring Size - Minimum
1
Length Between Mounting Holes
11 1/8 in
Exterior Door Width - Maximum
48 in

Details

Item
Door Closer
Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 1431
Closer Type
Hold Open
Color
Gray
Finish
Aluminum Powder Coated
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Aluminum Silicon Alloy
ADA Compliant
Yes
Projection from Wall
2 1/4 in
Arm Material
Die Cast Aluminum
Includes
Machine Screws and Self Tapping Screws
Arm Type
Parallel
Max. Door Opening
90 Degrees to 160 Degrees
Standards
ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed
Ligature Resistant
No
Category Type
Parallel Arm
Series
1431
Features
Corrosion-Resistant, Impact-Resistant
Type
Interior/Exterior Institutional
Door Handing
Non-Handed
Mounting Style
Universal, Top Jamb and Standard
Hand
NH
Door Opening - Minimum
90 Degrees
Operation Style
Manual
Interior/Exterior Use
Interior/Exterior
UL Fire Rating
UL10C
Performance Grade
1
Projection
2 1/4 in
Compatible Brand
Sargent
Product Type
Door Closer
Closer Cycles
25,000,000
Spring Type
Adjustable
Door Opening - Maximum
160 Degrees
ANSI/BHMA Finish
Aluminum Painted
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant

Description

Door Closer, Sargent 1431 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed, ADA Compliant Yes, Finish Aluminum Painted, Arm Material Die Cast Aluminum, Arm Type Parallel, Color Gray, Exterior Door Width 48 in
