  6. Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Bronze

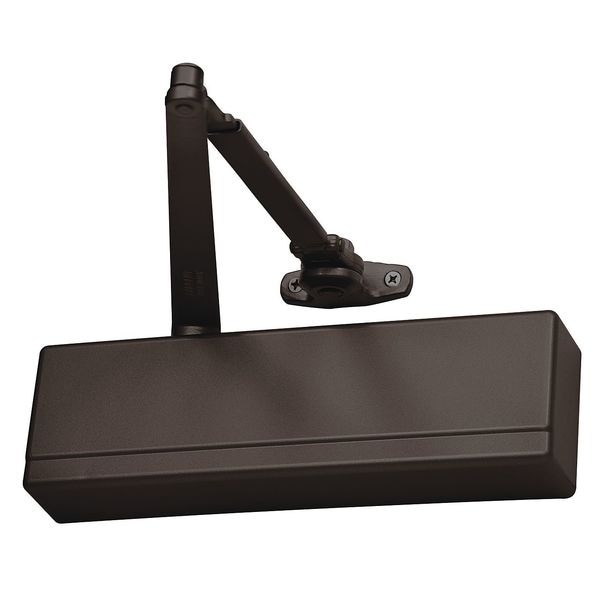

Sargent Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Bronze 351-UH TB EB - main
Shop SARGENT

Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Bronze

  • Mfr # 351-UH TB EB

  • Zoro # G4545791

product price:  $505.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 351
Closer Type
Hold Open
Color
Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
351-UH TB EB
Zoro #
G4545791
UPC #
-
Country of Origin
United States

Dimensions

Housing Depth
2-3/16"
Housing Height
4"
Housing Length
13"
Exterior Door Width
48 in
Spring Size
Adjustable 1 to 6
Interior Door Width
60 in
Spring Size - Maximum
6
Interior Door Width - Maximum
60 in
Spring Size - Minimum
1
Exterior Door Width - Maximum
48 in
Height Between Mounting Holes
2 1/2 in
Length Between Mounting Holes
9 in

Details

Item
Door Closer
Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 351
Closer Type
Hold Open
Color
Bronze
Finish
Bronze Powder Coated
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Aluminum Silicon Alloy
Projection from Wall
2 3/16 in
Arm Material
Die Cast Aluminum
Standards
ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed
Arm Type
Parallel
ADA Compliant
Yes
Max. Door Opening
90 Degrees to 160 Degrees
Includes
Machine Screws and Self Tapping Screws
Ligature Resistant
No
Category Type
Parallel Arm
Features
High Impact Non-Corrosive Plastic Covers with Machine Screws, Self Sticking Templates
Series
1700
Type
Interior/Exterior Institutional
Door Handing
Non-Handed
Hand
NH
Mounting Style
Universal, Parallel, Top Jamb and Standard
Closer Cycles
25,000,000
Spring Type
Adjustable
Fire Rating
3 hr
Product Type
Door Closer
UL Fire Rating
UL10C
Door Opening - Minimum
120 Degrees
Compatible Brand
Sargent
Operation Style
Manual
Door Opening - Maximum
180 Degrees
Interior/Exterior Use
Interior/Exterior
Projection
2 3/16 in
Ligature-Resistant
Not Ligature-Resistant
ANSI/BHMA Finish
Dark Bronze Painted
Performance Grade
1

Description

Door Closer, Sargent 351 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed, ADA Compliant Yes, Finish Dark Bronze Painted, Arm Material Die Cast Aluminum, Arm Type Parallel, Exterior Door Width 48 in
