  6. Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Gray
Sargent Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Gray 351-UH TB EN - main

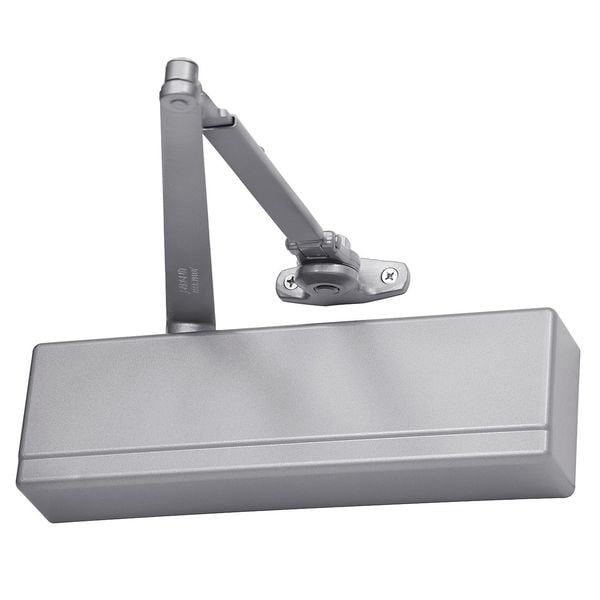

Manual, Hydraulic, Sargent 351, Door Closer, Heavy Duty Interior and Exterior, Gray

  • Mfr # 351-UH TB EN

  • Zoro # G4622186

product price:  $505.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 351
Closer Type
Hold Open
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
351-UH TB EN
Zoro #
G4622186
UPC #
-
Country of Origin
United States

Dimensions

Housing Depth
2-3/16"
Housing Height
4"
Housing Length
13"
Interior Door Width
60 in
Exterior Door Width
48 in
Spring Size
Adjustable 1 to 6
Height Between Mounting Holes
2 1/2 in
Spring Size - Minimum
1
Interior Door Width - Maximum
60 in
Spring Size - Maximum
6
Length Between Mounting Holes
9 in
Exterior Door Width - Maximum
48 in

Details

Item
Door Closer
Closer Mounting Style
Parallel
Closer Performance
Heavy Duty
Closer Series
Sargent 351
Closer Type
Hold Open
Color
Gray
Finish
Aluminum Powder Coated
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Cast Aluminum Silicon Alloy
Standards
ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed
Projection from Wall
2 3/16 in
Arm Type
Parallel
Max. Door Opening
90 Degrees to 160 Degrees
Arm Material
Die Cast Aluminum
Ligature Resistant
No
Includes
Machine Screws and Self Tapping Screws
ADA Compliant
Yes
Category Type
Parallel Arm
Series
1700
Door Handing
Non-Handed
Features
High Impact Non-Corrosive Plastic Covers with Machine Screws, Self Sticking Templates
Type
Interior/Exterior Institutional
Mounting Style
Universal, Parallel, Top Jamb and Standard
Hand
NH
Projection
2 3/16 in
Fire Rating
3 hr
Performance Grade
1
Product Type
Door Closer
ANSI/BHMA Finish
Aluminum Painted
Ligature-Resistant
Not Ligature-Resistant
Interior/Exterior Use
Interior/Exterior
Door Opening - Maximum
180 Degrees
UL Fire Rating
UL10C
Door Opening - Minimum
120 Degrees
Operation Style
Manual
Closer Cycles
25,000,000
Compatible Brand
Sargent
Spring Type
Adjustable

Description

Door Closer, Sargent 351 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A156.4, ICC A117.1, UL and cUL Listed, ADA Compliant Yes, Finish Aluminum Painted, Arm Material Die Cast Aluminum, Arm Type Parallel, Color Gray, Exterior Door Width 48 in
