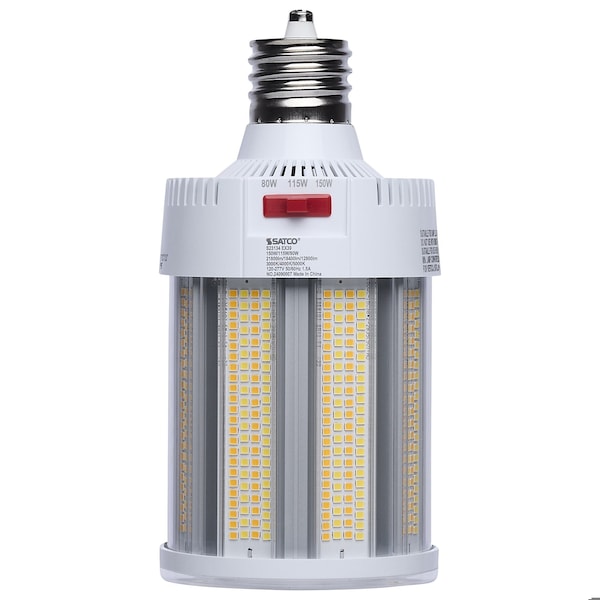

150/115/80 Watt 30K/40K/50K CCT Field Selectable LED Corncob Mogul Extended Base 120-277
- Mfr # S23134
- Zoro # G015718478
Key Features
Specifications
Product Information
- MFR #
- S23134
- Zoro #
- G015718478
- UPC #
- 45923231346
- Country of Origin
- China
Dimensions
- Length
- 8.3 in
- Bulb Dia.
- 4.1 in
Details
- Item
- HID Replacement
- Voltage
- 120V to 277V
- Watts
- 150 W / 115 W / 80 W
- Bulb Base Type
- Mogul Extended
- Bulb Shape
- Corncob
- Color Temperature
- 3000 K, 4000 K, 5000 K
- Dimmable
- Yes
- Lumens
- 24812 L / 19816 L / 14270 L
- Rated Life
- 50,000 hr
- Light Color
- White
- Color Rendering Index
- Greater than 80
- Standards
- cULus - Listed; cULus - Classified; FCC; Damp; RoHS; DLC; IP54
- Bulb Beam Angle
- 280 Degrees
- Maximum Operating Temperature
- 122 Degrees F
- HID Equivalent
- 450 W
- Location Rating
- Damp
- Application
- Lighting
- Number of Bulbs
- 1
- Minimum Operating Temperature
- -40°F
- Material
- Aluminum / Polycarbonate
- Ansi Base
- EX39
- Color Temperature Description
- Soft White to Natural Light
Description
SATCO NUVO's S23134 Hi-Lumen Hi-Pro lamp delivers over 24,000 lumens, replacing metal halide lamps up to 450W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed fixture rating suit industrial and commercial spaces like warehouses and gymnasiums. The Type B ballast bypass design allows direct operation on 120-277V systems. A universal operating position, active cooling fan, and 6kV surge protection enhance reliability. With a 50,000-hour lifespan, this lamp ensures long-lasting, high-lumen output.
- CCT and Wattage Selectable
- Range Voltage 120V-277V
- Very High Lumen Output
- Type B Ballast Bypass
- Integrated Active Cooling Fan
- Damp location rated
- Min Compartment Size 18.50" x 12.60" x 12.60"
- 6kV Surge Protection
- 50,000 Hour Functional Life
- 5 Year Warranty
