270/200/135 Watt 30K/40K/50K CCT Field Selectable LED Corncob Mogul Extended Base 120-277
- Mfr # S23136
- Zoro # G615718472
Key Features
Specifications
Product Information
- MFR #
- S23136
- Zoro #
- G615718472
- UPC #
- 45923231360
- Country of Origin
- China
Dimensions
- Length
- 12.3 in
- Bulb Dia.
- 5.6 in
Details
- Item
- HID Replacement
- Voltage
- 120V to 277V
- Watts
- 270 W / 200 W / 135 W
- Bulb Base Type
- Mogul Extended
- Bulb Shape
- Corncob
- Color Temperature
- 3000 K, 4000 K, 5000 K
- Dimmable
- Yes
- Lumens
- 45330 L / 34581 L / 24450 L
- Rated Life
- 50,000 hr
- Light Color
- White
- Bulb Beam Angle
- 280 Degrees
- Color Rendering Index
- Greater than 80
- Standards
- cULus - Listed; cULus - Classified; FCC; Damp; RoHS; DLC; IP54
- Maximum Operating Temperature
- 122 Degrees F
- Minimum Operating Temperature
- -40°F
- Material
- Aluminum / Polycarbonate
- Location Rating
- Damp
- Application
- Lighting
- HID Equivalent
- 600 W
- Color Temperature Description
- Soft White to Natural Light
- Ansi Base
- EX39
- Number of Bulbs
- 1
Description

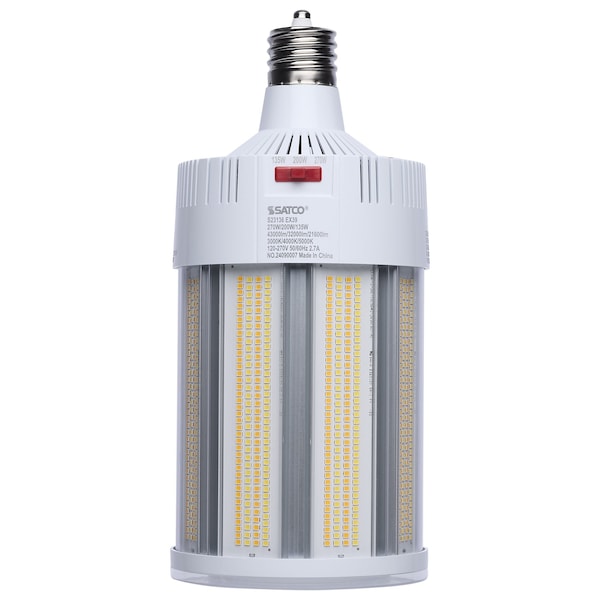

SATCO NUVO's S23136 Hi-Lumen Hi-Pro lamp delivers over 45,000 lumens, replacing metal halide lamps up to 600W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed fixture rating suit industrial and commercial spaces like warehouses and gymnasiums. A support bracket and safety cable add extra security during installation. The Type B ballast bypass design allows direct operation on 120-277V systems. A universal operating position, active cooling fan, and 6kV surge protection enhance reliability. With a 50,000-hour lifespan, this lamp ensures long-lasting, high-lumen output.
- CCT and Wattage Selectable
- Range Voltage 120V-277V
- Very High Lumen Output
- Type B Ballast Bypass
- Integrated Active Cooling Fan
- Damp location rated
- Min Compartment Size 18.50" x 14.96" x 14.96"
- 6kV Surge Protection
- 50,000 Hour Functional Life
- 5 Year Warranty
