360/270/180 Watt 30K/40K/50K CCT Field Selectable LED Corncob Mogul Extended Base 277-480
Mfr # S23138
Zoro # G515718473
product price:Â
$
269.99
/ea
Free Shipping & Returns
Key Features
Voltage
277 to 480 V
Watts
360 W / 270 W / 180 W
Bulb Base Type
Mogul Extended
Bulb Shape
Corncob
Color Temperature
3000K / 4000K / 5000K
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S23138
- Zoro #
- G515718473
- UPC #
- 45923231384
- Country of Origin
- China
Dimensions
- Length
- 12.3 in
- Bulb Dia.
- 5.6 in
Details
- Item
- HID Replacement
- Voltage
- 277 to 480 V
- Watts
- 360 W / 270 W / 180 W
- Bulb Base Type
- Mogul Extended
- Bulb Shape
- Corncob
- Color Temperature
- 3000K / 4000K / 5000K
- Dimmable
- Yes
- Lumens
- 59004 L / 46160 L / 31799 L
- Rated Life
- 50,000 hr
- Light Color
- White
- Bulb Beam Angle
- 280 Degrees
- Standards
- cULus - Listed; cULus - Classified; FCC; Damp; RoHS; DLC; IP54
- Color Rendering Index
- Greater than 80
- Maximum Operating Temperature
- 122°F
- Application
- Lighting
- Minimum Operating Temperature
- -40°F
- Material
- Aluminum / Polycarbonate
- Location Rating
- Damp
- Ansi Base
- EX39
- Color Temperature Description
- Soft White to Natural Light
- HID Equivalent
- 750 W
- Number of Bulbs
- 1
Description

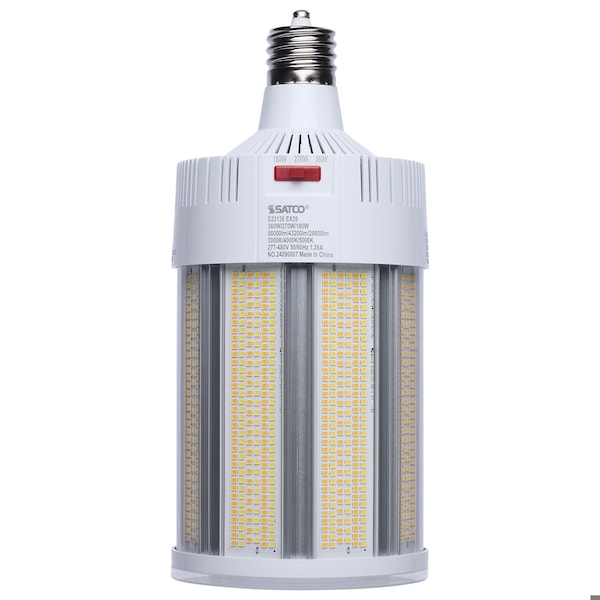

SATCO NUVO's S23138 Hi-Lumen Hi-Pro lamp delivers over 59,000 lumens, replacing metal halide lamps up to 750W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed fixture rating suit industrial and commercial spaces like warehouses and gymnasiums. A support bracket and safety cable add extra security during installation. The Type B ballast bypass design allows direct operation on 277-480V systems. A universal operating position, active cooling fan, and 4kV surge protection enhance reliability. With a 50,000-hour lifespan, this lamp ensures long-lasting, high-lumen output.
- CCT and Wattage Selectable
- Range Voltage 277V-480V
- Very High Lumen Output
- Type B Ballast Bypass
- Integrated Active Cooling Fan
- Damp location rated
- Min Compartment Size 18.50" x 14.96" x 14.96"
- 4kV Surge Protection
- 50,000 Hour Functional Life
- 5 Year Warranty
