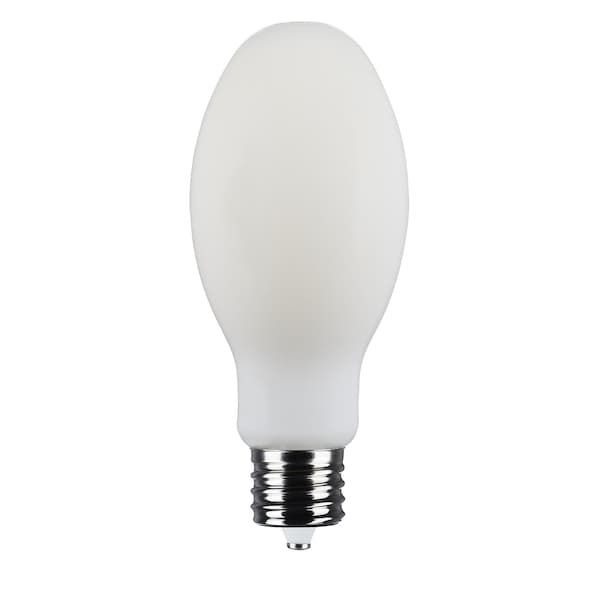

40 Watt LED HID Replacement ED28 3000K CCT Mogul Extended Base 120-277 Range Voltage

Mfr # S13198
Zoro # G815839182

55.99

Key Features

Voltage

120V-277V

Watts

40W

Bulb Shape

ED28

Bulb Housing

Glass

Color Temperature

Soft White; 3000K

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: S13198
Zoro #: G815839182
UPC #: 45923131981
Country of Origin: China

Dimensions

Length: 8.4 in
Bulb Dia.: 3.54 in

Details

Voltage: 120V-277V
Watts: 40W
Bulb Base Type: Mogul Extended
Bulb Shape: ED28
Bulb Housing: Glass
Color Temperature: Soft White; 3000K
Dimmable: Non-Dimmable
Lumens: 6000L
Rated Life: 50,000 hr
Light Technology: LED
Color Rendering Index: 80+
Wattage Equivalency: 170W
Bulb Beam Angle: 320°
Light Color: Soft White
Standards: cULus - Classified;cULus - Listed;FCC;Wet;RoHS;IP65
Indoor/Outdoor Usage: Indoor and Outdoor
Bulb Finish: White
For Enclosed Fixtures: Yes
Bulb Minimum Starting Temperature: -22 degrees fahrenheit
Maximum Operating Temperature: 149 degrees fahrenheit
Application: Lighting
ANSI Base: EX39
Color: White
Location Rating: Wet
HID Equivalent: 175W
Material: Glass
For Use With: Lighting
Operating Temperature: -30C (-22F) to +65C (+149F)

Description

Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO's long-lasting S13198 ED28 HID replacement lamp offers outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. Offered in a white finish with soft 3000K CCT, this lamp will provide the quality light you need.

ED28 Shape
EX39 Base
White Finish
40W
3000K CCT
Range Voltage 120V-277V
4kV Surge Protection
Ballast Bypass Type B
IP65 Rated
