Shop SAWSTOP

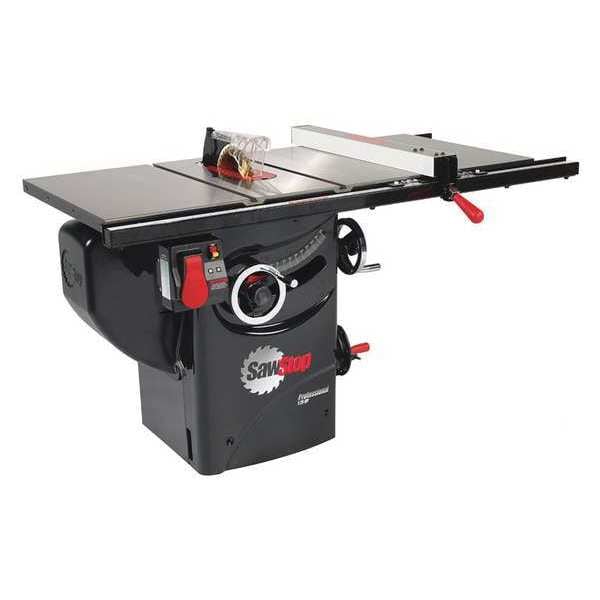

Corded Table Saw 10 in Blade Dia., 30 in

  • Mfr # PCS175-PFA30

  • Zoro # G3345067

product price:  $3,448.99
/ea
Additional $255.00 delivery surcharge applies per item.
See details

Key Features

Blade Dia.
10 in
Max. Cut Width Right of Blade
30 in
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Max. Cutting Depth @ 0 Deg.
3 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PCS175-PFA30
Zoro #
G3345067
UPC #
857766003352
Country of Origin
Taiwan, Province of China

Dimensions

Blade Dia.
10 in
Max. Cut Width Right of Blade
30 in
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Arbor Size
5/8 in
Overall Depth
31 1/8 in
Overall Height
34 in
Depth of Cut @ 45 Deg.
2-1/4"
Depth of Cut @ 90 Deg.
3-1/8"
Overall Width
61 3/4 in
Exhaust Port Size
4 in
Table Width
61 3/4 in
Max. Cut Width Left of Blade
12 in
Table Length
27 in
Table Width with Extension
61 3/4 in
Cord Length
9 ft
Cutting Width Left of Blade - Maximum
12 in
Cutting Depth at 45 Degrees - Maximum
2 1/4 in
Cutting Width Right of Blade - Maximum
30 in
Cutting Depth at 0 Degrees - Maximum
3 1/8 in
Blade Diameter
10 in

Details

Item
Table Saw
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Current
14 A
Max. Blade Speed
4,000 RPM
Corded/Cordless
Corded
Cutting Capacity Rip Left
12"
Hz
60
Table Surface w/Extension
56 in x 27 in
Amps
14.0
Blade Tilt
Left
No Load RPM
4000
Table Front of Blade
10 1/4 in
Includes
30 in Aluminum Extrusion Fence, Base-Tool, Rail Kit
Corded/Banded
Corded
Motor HP
1-3/4
Cutting Capacity Rip Right
30-1/2"
Phase
Single-Phase
Series
PCS
Stand Type
Cabinet
Table Saw Type
Cabinet
Automatic Blade Safety Retraction
Yes
Arbor Shape
Round
Power Source
Corded
Variable Speed
No
Horsepower
1.75 hp
Amps AC
14
Includes Automatic Blade Safety Retraction
Automatic Blade Safety Retraction Included
Speed Control
Single
Bevel Angle - Maximum
45 Degrees
Frequency
60 Hz
Blade Speed - Maximum
4,000 RPM
Bevel Angle - Minimum
0 Degrees
Bevel Tilt Direction
Left
Power Source - TS Only
Corded

Description

Table Saw, Power Source Corded, Series PCS, Blade Dia. 10 in, Max. Blade Speed 4,000 RPM, Current 14 A, Horsepower 1.75 hp, Arbor Size 5/8 in, Arbor Shape Round, Bevel Angle Range 0 Degrees to 45 Degrees Left, Max. Cutting Depth @ 0 Deg. 3 1/8 in, Max. Cutting Depth @ 45 Deg. 2 1/4 in, Table Saw Type Cabinet, Stand Type Cabinet, Max. Cut Width Right of Blade 30 in, Max. Cut Width Left of Blade 12 in, Table Width 61 3/4 in, Table Width with Extension 61 3/4 in, Table Length 27 in

Restrictions

This item has been restricted from sale in the following states: AK, HI
