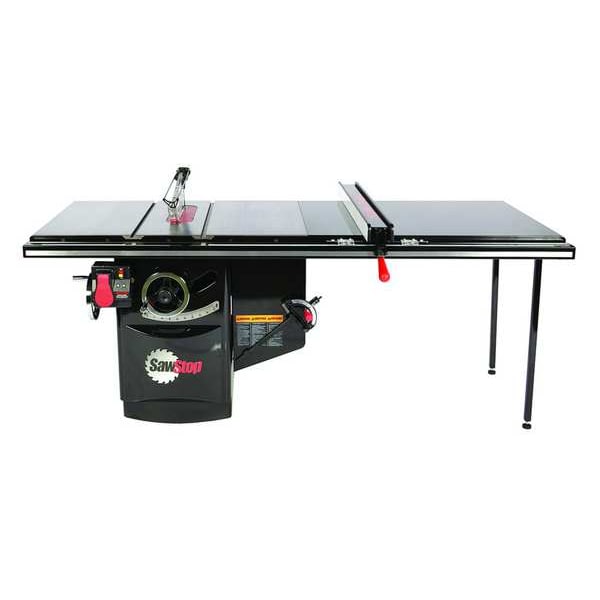

Corded Table Saw 10 in Blade Dia., 52 1/2 in
Mfr # ICS51230-TGI252
Zoro # G3345049
product price:
$
6,672.99
/ea
Additional $385.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Blade Dia.
10 in
Max. Cut Width Right of Blade
52 1/2 in
Voltage
230 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ICS51230-TGI252
- Zoro #
- G3345049
- UPC #
- 857555005109
- Country of Origin
- Taiwan, Province of China
Dimensions
- Blade Dia.
- 10 in
- Max. Cut Width Right of Blade
- 52 1/2 in
- Max. Cutting Depth @ 0 Deg.
- 3 1/8 in
- Max. Cutting Depth @ 45 Deg.
- 2 1/4 in
- Arbor Size
- 5/8 in
- Depth of Cut @ 90 Deg.
- 3-1/8"
- Overall Depth
- 36 1/2 in
- Overall Width
- 85 1/4 in
- Depth of Cut @ 45 Deg.
- 2-1/4"
- Exhaust Port Size
- 4 in
- Overall Height
- 34 in
- Max. Cut Width Left of Blade
- 12 1/2 in
- Table Length
- 30 in
- Table Width
- 85 1/4 in
- Table Width with Extension
- 85 1/4 in
- Blade Diameter
- 10 in
- Cutting Width Right of Blade - Maximum
- 52 1/2 in
- Cutting Depth at 0 Degrees - Maximum
- 3 1/8 in
- Cutting Width Left of Blade - Maximum
- 12 1/2 in
- Cutting Depth at 45 Degrees - Maximum
- 2 1/4 in
Description
This SawStop table saw is a cabinet-style saw with a 10 in blade diameter and 5/8 in round arbor, rated at 5 hp with a maximum blade speed of 4,000 RPM. It runs on 230V AC, single-phase, 60 Hz, drawing 19.7-20.5 A, and is corded. Bevel angle range is 0 to 45 degrees left, with a maximum cutting depth of 3-1/8 in at 0 degrees and 2-1/4 in at 45 degrees. Maximum cut width is 52-1/2 in to the right of the blade and 12-1/2 in to the left. Table dimensions are 85-1/4 in W x 30 in L (with extension, table width remains 85-1/4 in), with an exhaust port size of 4 in. The saw includes automatic blade safety retraction. It ships as a bare tool. Overall dimensions are 85-1/4 in W x 36-1/2 in D x 34 in H. Specifications Blade Diameter: 10 in | Arbor Size: 5/8 in | Arbor Shape: Round Horsepower: 5 hp | Max. Blade Speed: 4,000 RPM Voltage: 230V AC | Phase: Single-Phase | Frequency: 60 Hz | Current: 19.7-20.5 A Power Source: Corded Bevel Angle Range: 0° to 45° Left Max. Cutting Depth: 3-1/8 in (@ 0°), 2-1/4 in (@ 45°) Max. Cut Width: 52-1/2 in (right of blade), 12-1/2 in (left of blade) Table Saw Type / Stand Type: Cabinet Table Dimensions: 85-1/4 in W x 30 in L (with extension: 85-1/4 in W) Exhaust Port Size: 4 in Automatic Blade Safety Retraction: Yes Includes: Bare Tool Overall Dimensions: 85-1/4 in W x 36-1/2 in D x 34 in H Country of Origin: Taiwan State Restrictions: Not available for sale in AK, HI
Restrictions
This item has been restricted from sale in the following states:
AK, HI
