Shop SCHAEFER

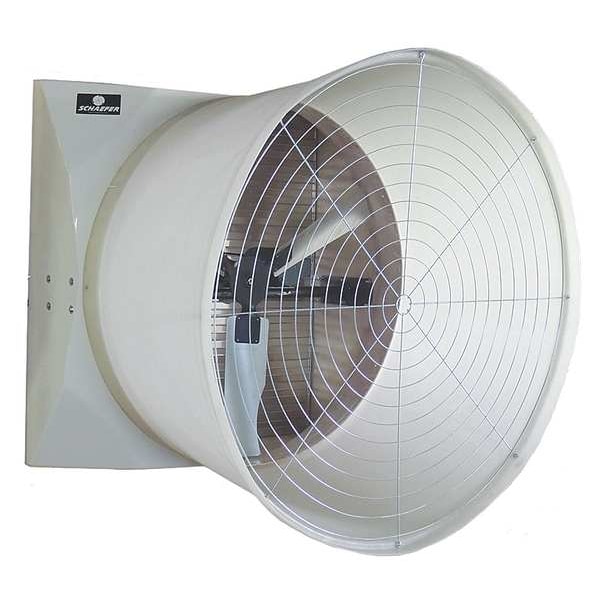

Cone Exhaust Fan, 57 In, 115/230V, 1 PH

  • Mfr # 573CF112G-1-HV

  • Zoro # G9926165

product price:
$
3,785.99
/ea
Additional $210.00 delivery surcharge applies per item.
See details

Key Features

Type
Cone, Belt Drive
Full Load Amps
13.6/6.8 A
Motor Insulation
Class B
Max. Depth (In.)
62 3/4 in
Opening Required W (In.)
62 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
573CF112G-1-HV
Zoro #
G9926165
UPC #
717490932628
Country of Origin
United States
Type
Cone, Belt Drive
Full Load Amps
13.6/6.8 A
Motor Insulation
Class B
Opening Required W (In.)
62 1/2 in
Opening Required H (In.)
62 1/2 in
Mounting Location
Wall
CFM/Watt @ 0.000-In. SP
23.3
Motor RPM
1725
Item
Agricultural Exhaust Fan
Voltage
115/230
CFM @ 0.100-In. SP
28,600
Phase
1
CFM/Watt @ 0.050-In. SP
21.2
Number of Blades
3
Free Area (Square-Ft.)
21
Hz
60
Frame Finish
Gel Coated
Watts
1,486 W
CFM @ 0.050-In. SP
30,500
CFM/Watt @ 0.100-In. SP
19.3
Propeller Material
Galvanized Steel
Frame Material
Fiberglass
Motor Enclosure
Totally Enclosed Air Over
Bearing Type
Self-Aligning Pillow Block
Motor Type
3-Phase
CFM @ 0.000-In. SP
32,400
HP
1 1/2 hp
Max. Ambient Temp. (F)
104 Degrees F
CFM @ 0.150-In. SP
26,000
Fan RPM
540
CFM/Watt @ 0.150-In. SP
17.0
Includes
Belt Tensioner, Cone, Inlet Shutter
Assembled
Assembled
Exhaust Airflow @ 0.100 in SP
28,600 cfm
Nameplate Voltage
115/230V AC
Electrical Connection
Hardwired
Frequency
60 Hz
Exhaust Airflow @ 0.000 in SP
32,400 cfm
Thermal Protection
Yes
Number of Fans
1
Ventilation Type
Exhaust
Guard Type
Exhaust
Guard Finish
Zinc Plated
Number of Shutters
1
Free Area
21 sq ft
Guard Material
Steel
Full Load Current
13.6 A
Includes Motor
Yes
Wattage
1,486 W
Housing Material
Fiberglass
Number of Speeds
1
Drive Type
Belt Drive
Motor Speed
1,725 RPM
Fan Style
Cone
Maximum Ambient Operating Temperature
104 Degrees F
Speed Controllable
No
Maximum Airflow
35,000 cfm
Blade Finish
Galvanized
Housing Finish
Gel Coat
Includes Dehumidistat
No
Motor Horsepower
1 1/2 hp
Blade Material
Steel

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 57 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 32,400 cfm, For Cut-Out Height 62 1/2 in, For Cut-Out Width 62 1/2 in, For Minimum Wall Thickness 2 in, Frame Finish Gel Coated, Frame Material Fiberglass, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Fiberglass, Housing Finish Gel Coat, Includes Belt Tensioner, Cone, Inlet Shutter, Includes Dehumidistat No
