Shop SCHAEFER

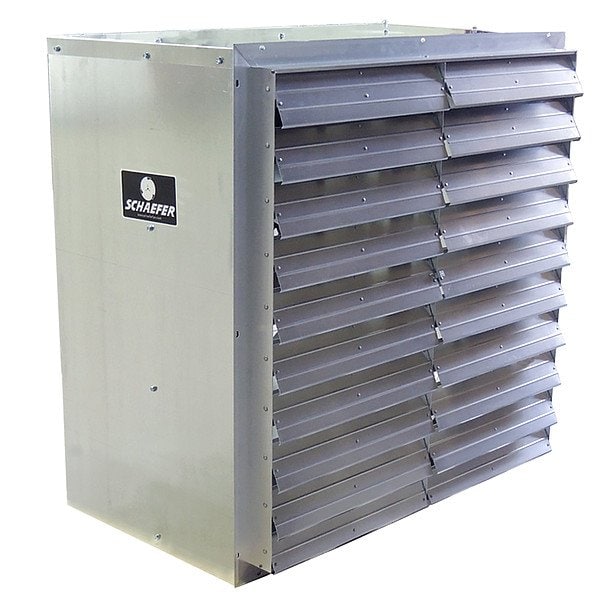

Exhaust Fan, 48 Blade dia., Steel

  • Mfr # 485B1
  • Zoro # G921914865
product price:
$
2,787.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Type
Single Phase
Housing Finish
Galvanized
Drive Type
Belt Drive
Maximum Airflow
18,600 cfm
Guard Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
485B1
Zoro #
G921914865
UPC #
717490661337
Country of Origin
United States

Dimensions

For Maximum Wall Thickness
6 in
Manufacturer Warranty Length
2 yr
For Cut-Out Height
55 in
Overall Depth
35 in
Grille Width
55 in
Overall Width
55 in
Overall Diameter
48 in
For Cut-Out Width
55 in
Grille Length
55 in
Profile Height Family
High
Overall Height
55 in
Blade Diameter
48 in

Details

Motor Type
Single Phase
Housing Finish
Galvanized
Drive Type
Belt Drive
Maximum Airflow
18,600 cfm
Guard Material
Steel
Frequency
50 Hz, 60 Hz
Phase
1
Nameplate Voltage
115/230V AC
Motor Enclosure
Totally Enclosed Air Over
Includes Motor
Yes
Number of Fans
1
Item
Exhaust Fan
Frame Material
Galvanized Steel
Speed Controllable
No
Motor Insulation
Class B
Motor Speed
1,350 RPM, 1,500 RPM, 1,550 RPM, 1,800 RPM
Fan Style
Box
Exhaust Airflow @ 0.000 in SP
18,600 cfm
Discharge Direction
Direct
Motor Horsepower
1 hp
Electrical Connection
Hardwired
Guard Finish
Galvanized
Number of Speeds
1
Guard Type
Intake
Ventilation Type
Exhaust
Wattage
1,400 W
Blade Material
Steel
Frame Finish
Galvanized
Includes Dehumidistat
No
Number of Blades
5
Vent Design
Ductless
Includes
Belt Tensioner, front guard, Shutter
Blade Finish
Galvanized
Grille Material
Steel
Grille Color
Silver
Housing Material
Steel
Assembled
Assembled
Propeller Material
Galvanized Steel
Fan Voltage
115/230 V
Hz
50/60 Hz
Full Load Amps
9.9/5.0 A
Standards
UL/CSA Listed
CFM Range
18600 cfm

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 48 in, Blade Material Steel, Control Type Not Applicable, Drive Type Belt Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 18,600 cfm, For Cut-Out Height 55 in, For Cut-Out Width 55 in, For Maximum Wall Thickness 6 in, For Minimum Wall Thickness Not Applicable, Frame Finish Galvanized, Frame Material Steel, Guard Finish Galvanized, Guard Material Steel, Guard Type Intake, Hazardous Location Class Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
