Shop SCHAEFER

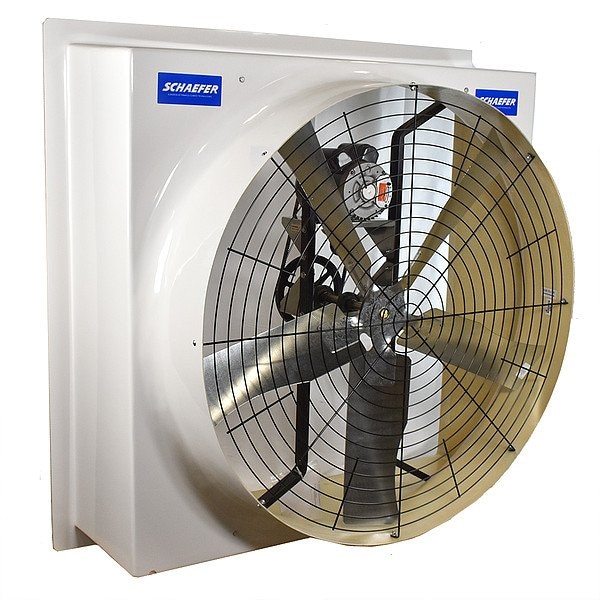

Exhaust Fan

  • Mfr # FFM483G1
  • Zoro # G222579442
product price:
$
3,626.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Full Load Current
5 A, 9.9 A
Manufacturer Warranty Length
2 yr
Blade Diameter
48 in
Motor Type
Totally Enclosed Air Over
Grille Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FFM483G1
Zoro #
G222579442
UPC #
717490343592
Country of Origin
United States

Dimensions

Manufacturer Warranty Length
2 yr
Blade Diameter
48 in
Grille Width
48 in
Overall Diameter
48 in
Overall Height
56 1/4 in
For Maximum Wall Thickness
12 in
Grille Length
48 in
Profile Height Family
High
Overall Width
55 3/4 in
For Cut-Out Height
56 1/4 in
For Cut-Out Width
55 3/4 in
Overall Depth
33 in

Details

Full Load Current
5 A, 9.9 A
Motor Type
Totally Enclosed Air Over
Grille Color
Black
Fan Style
Shutter-Mounted
Frame Material
Fiberglass
Drive Type
Belt Drive
Includes
Belt Tensioner, front guard, Shutter
Grille Material
Steel
Number of Fans
1
Maximum Airflow
18,610 cfm
Guard Finish
Powder Coated
Blade Finish
Galvanized
Item
Exhaust Fan
Motor Enclosure
Totally Enclosed
Ventilation Type
Exhaust
Blade Material
Galvanized Steel
Standards
UL/CSA Listed
Nameplate Voltage
115/230V AC
Guard Material
Powder-Coated Steel
Housing Finish
Polished
Includes Dehumidistat
No
Frequency
50 Hz, 60 Hz
Frame Finish
Polished
Electrical Connection
Hardwired
Wattage
1,100 W
Motor Speed
1,500 RPM, 1,800 RPM
Guard Type
Exhaust
Assembled
Assembled
Housing Material
Fiberglass
Phase
1
Number of Speeds
1
Vent Design
Ductless
Discharge Direction
Direct
Number of Blades
3
Motor Horsepower
1 hp
Speed Controllable
No
Motor Insulation
Class B
Hz
50/60 Hz
Voltage
115/230 V
Full Load Amps
8.4/4.2 A
Watts
1,200 W

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 48 in, Blade Material Galvanized Steel, Control Type Not Applicable, Drive Type Belt Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP Not Applicable, For Cut-Out Height 56 1/4 in, For Cut-Out Width 55 3/4 in, For Maximum Wall Thickness 12 in, For Minimum Wall Thickness Not Applicable, Frame Finish Polished, Frame Material Fiberglass, Guard Finish Powder Coated, Guard Material Steel, Guard Type Exhaust

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
