  9. Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115/230V, 11,700 cfm, Non-Oscillating

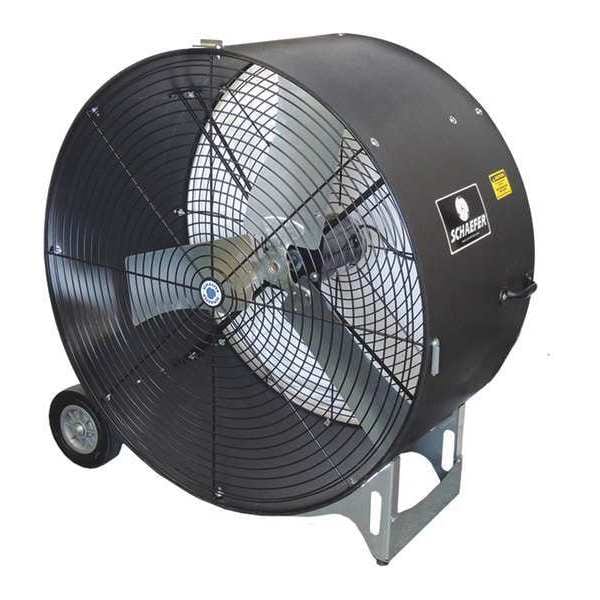

Schaefer Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115/230V, 11,700 cfm, Non-Oscillating VKM36-B-O - main

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115/230V, 11,700 cfm, Non-Oscillating

  • Mfr # VKM36-B-O

  • Zoro # G8834454

product price: $862.99
/ea
Item requires special delivery charges. A $50.00 per item surcharge will be applied.

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VKM36-B-O
Zoro #
G8834454
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Shaft Dia.
5/8 in
Outside Dia.
37-3/4 in
Height
39-3/4 in
Max. Depth
19-3/4 in
Width
40-3/4 in
Fan Cord Length
5 ft
Depth
19 3/4 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
1/2
Air Flow
11,700 cfm
Drive Type
Direct Drive
Blade Material
Galvanized Steel
Sound Level
75 dBA
Item
Air Circulator
Air Velocity @ 20 Ft.
550 fpm
Application
Spot Cooling and People Cooling; Air Circulation
Air Velocity @ 10 Ft.
700 fpm
Number of Blades
3
Motor RPM
865 RPM
Max. Ambient Temp.
104 Degrees F
Motor Insulation
Class F
Mobile/Stationary
Mobile
Watts
439 W
Motor Enclosure
Totally Enclosed Air Over
Fan Mounting Location
Floor
Environmental Applications
Industrial
Wire Guard Finish
Gloss Powder Coated
CFM High
11000
Motor Type
Permanent Split Capacitor
Hz
60
CFM/Watt
25.1
Fan Accessory Style
Standard
Housing Material
Polyethylene
Bearing Type
Ball, Permanently Lubricated and Sealed
Assembled
Yes
Air Velocity @ 40 Ft.
400 fpm
Fan Style
Standard Duty
Guard Material
Steel
Standards
UL, cUL, CSA
Thermal Protection
Automatic
Amps
7.0/3.5
Assembly Required
No
Fan Housing Material
Polyethylene
Wheeled Base
Mobile
RPM
865
Material
Polyethylene
Color
Black
Motor hp
1/2 hp

Description

Circulating Fan, Fan Mounting Location Floor, Number of Speeds 1, Blade Dia. 36 in, Non-Oscillating, Fan Cord Length 5 ft, Fan Power Source Plug-In, 439 W Watts, 865 RPM RPM, Number of Blades 3, 7/3.5 A Amps, Height 39 3/4 in, Width 40 3/4 in, 60 Hz Hz, Bearing Type Ball, Blade Material Steel, Steel, Black, AMCA Standard 230.99
