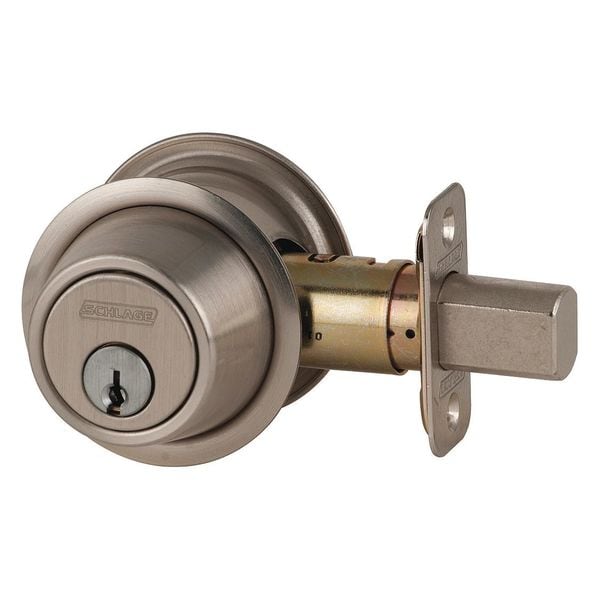

Schlage Deadbolt, 2 Grade, Satin Nickle B562P 619 - main

Deadbolt, 2 Grade, Satin Nickle

  • Mfr # B562P 619

  • Zoro # G0384721

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Mortise / Cylindrical
Cylindrical
Location Type
Commercial
Lockset Grade
2
Series
B
For Door Thickness
1-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B562P 619
Zoro #
G0384721
UPC #
-
Country of Origin
Mexico

Dimensions

For Door Thickness
1-3/4 in
Faceplate Dimensions
1 in x 2-1/4 in
Throw Length
1 in
Strike Plate Width
1 1/8 in
Faceplate Width
1 1/8 in
Strike Plate Height
2 3/4 in
Door Thickness - Maximum
1 7/8 in
Faceplate Height
2 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Mortise / Cylindrical
Cylindrical
Location Type
Commercial
Lockset Grade
2
Series
B
Lockset Finish
Satin Nickel
Keyway Type
Everest 29 S123
Key Type
Keyed Different
Standards
ANSI/BHMA A156.36-2020, BAA/TAA, CAN/ULC-S104, UL and cUL Listed
ADA Compliant
Yes
Mortise/Cylindrical
Cylindrical
Lockset Fire Rating
Not Rated
Item
Deadbolt Lock
For Use With
Various Door Types
Security Type
Medium-Duty
Strike Dim.
1-1/8 in x 2-1/4 in
Material
Zinc
Pins
6
Ligature Resistant
No
Number of Keys
2
Backset
2 3/8 in
Finish
Satin Nickel
Keying
Different
Grade
2
Cylinder
Double
Application
Residential
Number of Pins
6
Locking/Unlocking Access - Outside
Keyway
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Nickel-Plated, Clear Coated
ANSI Grade
2
UL Fire Rating
UL10B, UL10C
Cylinder Core Type
Conventional Core Cylinder
Includes Core
Core Included
Visual Indicator Message
No Message
Locking/Unlocking Access - Inside
Keyway
Ligature-Resistant
Not Ligature-Resistant

Description

Deadbolt Lock, Cylindrical, Commercial, Lockset Grade 2, Series B, Lockset Finish Satin Nickel, Keyway Type Everest 29 S123, Key Type Keyed Different, Standards ANSI/BHMA A156.36-2020, BAA/TAA, CAN/ULC-S104, UL and cUL Listed, ADA Compliant Yes, Lockset Fire Rating Not Rated, Backset 2 3/8 in, Ligature Resistant No, Faceplate Dimensions 1 in x 2-1/4 in, For Door Thickness 1 3/4 in, For Use With Various Door Types, Material Zinc, Number of Keys 2, Pins 6, Security Type Medium-Duty
