- MFR #
- ALX10 ATH 605
- Zoro #
- G804262274
- UPC #
- 00840067600658
- Country of Origin
- Mexico
- Electrical/Mechanical
- Mechanical
- Lockset Handle Type
- Lever
- Mortise / Cylindrical
- Cylindrical
- Lockset Function
- Passage
- Lockset Grade
- 2
- Style
- Curved Lever
- Lockset Finish
- Bright Brass
- Keyway Type
- None
- Key Type
- Not Keyed
- Item

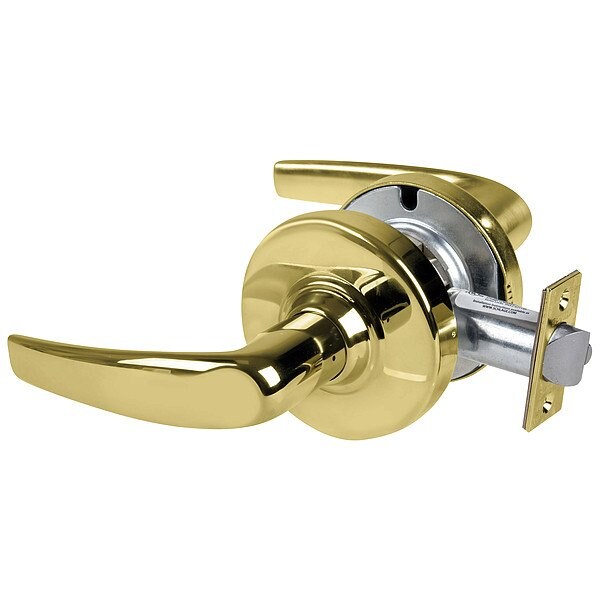

- Door Lockset
- Handle Material
- Steel
- Cylinder Core Type
- Conventional Core Cylinder
- Features
- Deep-Drawn Spindle with 5 Points of Lever Engagement Minimizes Droop and Wobble, Suites Perfectly with Nd Series Grade 1 Cylindrical and Nd Series Electrified Cylindrical
- Standards
- ANSI A156.2-2017, BAA/TAA, California Fire Code, Complies with ICC A117.1-2017 Accessible and Usable Buildings and Facilities, FF-H-106C Series 161, Florida Building Commission (ASTM E330, E1886, E1996), TDI (ASTM E330, E1886, E1996), CAN/ULC S104, UL 437
- Number of Keys
- 0
- Number of Pins
- 6
- Backset
- 2 3/4 in
- Ligature Resistant
- No
- Includes
- Not Available
- Lockset Performance Strength
- Not Available
- Mortise/Cylindrical
- Cylindrical
- Lockset Fire Rating
- 3 hr
- Strike Dim.
- 1-1/4 x 4-7/8 x 1-3/16 in
- Strike Type
- Curved Lip
- Location Type
- Not Available
- ADA Compliant
- Yes
- For Use With
- Not Available
- Fire Rating - Door Hardware
- 3 hr
- Visual Indicator Message
- No Message
- Visual Indicator Location
- Inside/Outside
- Lockset Function ANSI Code
- F75
- Lockset Type
- Mechanical
- Lockset Style
- ALX Athens
- ANSI Grade
- 2
- Locking/Unlocking Access - Inside
- Not Lockable
- UL Fire Rating
- UL10C
- Ligature-Resistant
- Not Ligature-Resistant
- ANSI/BHMA Finish
- Bright Brass, Clear Coated
- Performance Grade
- 2
- Hand Orientation
- Non-Handed
- Knob/Handle Material
- Brass
- Latch Bolt/Dead Bolt
- Spring Latch
- Fire Rating
- 3 hr
- Locking/Unlocking Access - Outside
- Not Lockable
