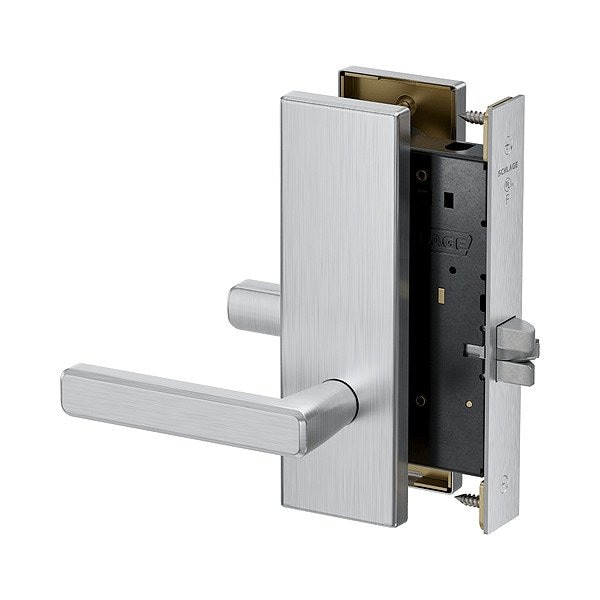

Door Lockset, 12/24V DC, Mortise

Mfr # PM010 PLAN 626
Zoro # G723522800

403.99

Free Shipping & Returns

Key Features

Failure Mode

Fail Safe or Fail Secure

Lockset Style

Playa

Strike Plate Width

1 1/4 in

Locking/Unlocking Access - Inside

Not Lockable

Door Thickness - Minimum

1 3/8 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM010 PLAN 626
Zoro #: G723522800
UPC #: 197163385522
Country of Origin: Mexico

Dimensions

Strike Plate Width: 1 1/4 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Lip Length: 1 3/16 in
Strike Plate Height: 4 7/8 in
Door Thickness - Maximum: 2 1/2 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Failure Mode: Fail Safe or Fail Secure
Item: Door Lockset
Lockset Style: Playa
Locking/Unlocking Access - Inside: Not Lockable
Visual Indicator Location: Inside/Outside
ADA Compliant: Yes
Number of Pins: 0
Lockset Type: Mechanical
Latch Bolt/Dead Bolt: Latch Bolt
Key Material: Nickel Silver
Includes Core: Core Included
Key Type: Not Keyed
Performance Grade: 1
Fire Rating: 3 hr
Application: Commercial Real Estate, Hospitality, Residential, Retail
Backset: 2 3/4 in
Includes: Dust Box
Lockset Function ANSI Code: F01
ANSI/BHMA Finish: Satin Chromium-Plated
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Knob/Handle Material: Zinc
Locking/Unlocking Access - Outside: Not Lockable
Mortise/Cylindrical: Mortise
Strike Type: Curved Lip
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
ANSI Grade: 1
Hand Orientation: Non-Handed
Voltage: 12/24V DC
Keyway Type: S123
Number of Keys: 0
Visual Indicator Message: No Message
Ligature-Resistant: Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise
