Shop SCHLAGE

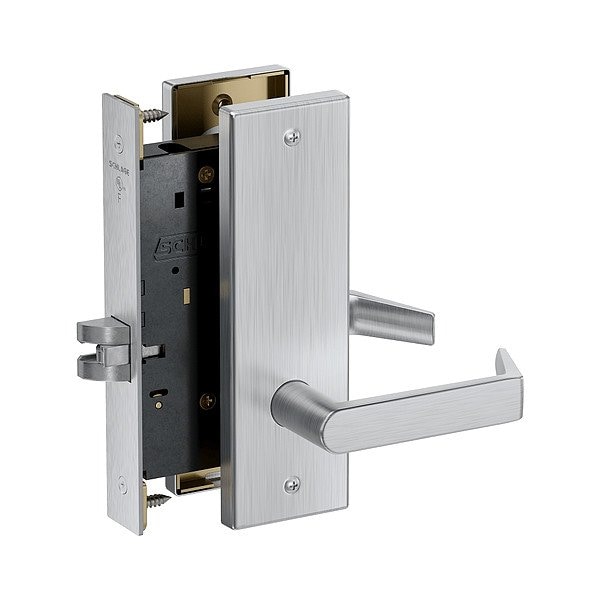

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM010 RHON 626

  • Zoro # G223522782

product price:
$
403.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Includes Core
Core Included
ADA Compliant
Yes
Visual Indicator Location
Inside/Outside
Knob/Handle Material
Zinc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM010 RHON 626
Zoro #
G223522782
UPC #
197163385584
Country of Origin
Mexico

Dimensions

Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 3/16 in
Door Thickness - Maximum
2 1/2 in
Strike Plate Width
1 1/4 in

Details

Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Includes Core
Core Included
ADA Compliant
Yes
Visual Indicator Location
Inside/Outside
Knob/Handle Material
Zinc
Lockset Style
Rhodes
Backset
2 3/4 in
Mortise/Cylindrical
Mortise
Lockset Function ANSI Code
F01
Application
Commercial Real Estate, Hospitality, Residential, Retail
Includes
Dust Box
Strike Type
Curved Lip
Performance Grade
1
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Keyway Type
S123
Key Material
Nickel Silver
Number of Keys
0
Locking/Unlocking Access - Inside
Not Lockable
Fire Rating
3 hr
Item
Door Lockset
ANSI Grade
1
ANSI/BHMA Finish
Satin Chromium-Plated
Failure Mode
Fail Safe or Fail Secure
Number of Pins
0
Latch Bolt/Dead Bolt
Latch Bolt
Voltage
12/24V DC
Locking/Unlocking Access - Outside
Not Lockable
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Key Type
Not Keyed
Ligature-Resistant
Not Ligature-Resistant
Visual Indicator Message
No Message

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
