Shop SCHLAGE

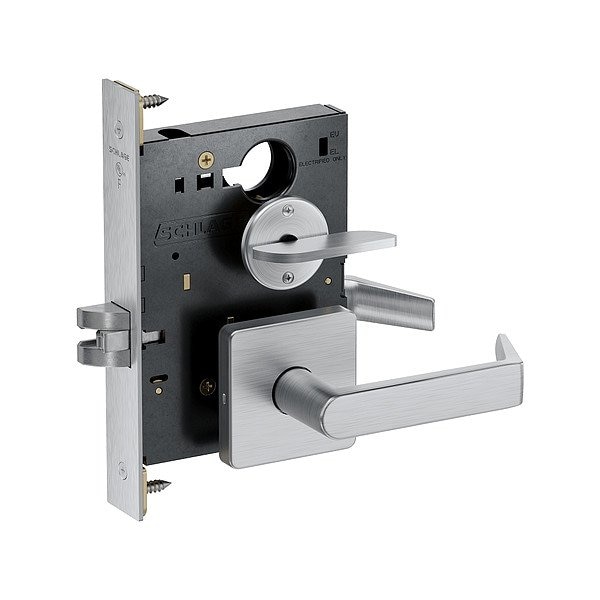

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM040 RHOD 626

  • Zoro # G023524030

product price:
$
493.99
/ea
Free Shipping & Returns

Key Features

Strike Plate Lip Length
1 3/16 in
Key Type
Not Keyed
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Inside
Not Lockable
Failure Mode
Fail Safe or Fail Secure
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM040 RHOD 626
Zoro #
G023524030
UPC #
197163385867
Country of Origin
Mexico

Dimensions

Strike Plate Lip Length
1 3/16 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 1/2 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Key Type
Not Keyed
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Inside
Not Lockable
Failure Mode
Fail Safe or Fail Secure
Hand Orientation
Non-Handed
Strike Type
Curved Lip
Performance Grade
1
Backset
2 3/4 in
Visual Indicator Location
Inside/Outside
Mortise/Cylindrical
Mortise
Fire Rating
3 hr
Voltage
12/24V DC
Item
Door Lockset
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Knob/Handle Material
Zinc
Locking/Unlocking Access - Outside
Thumb Turn
Includes
Dust Box
Lockset Style
Rhodes
ANSI/BHMA Finish
Satin Chromium-Plated
ADA Compliant
Yes
Includes Core
Core Included
Lockset Function ANSI Code
F22
Key Material
Nickel Silver
Lockset Type
Mechanical
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Number of Pins
0
ANSI Grade
1
Number of Keys
0
Application
Commercial Real Estate, Hospitality, Residential, Retail
Keyway Type
S123
Visual Indicator Message
No Message
Ligature-Resistant
Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
