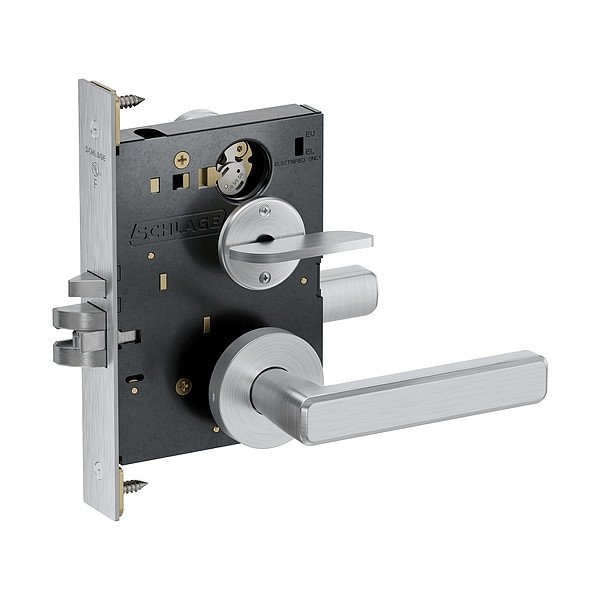

Door Lockset, 12/24V DC, Mortise

Mfr # PM050P PLAA 626
Zoro # G123522639

585.99

Free Shipping & Returns

Key Features

Number of Pins

Keyway Type

S123

Hand Orientation

Non-Handed

Performance Grade

Strike Plate Lip Length

1 3/16 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM050P PLAA 626
Zoro #: G123522639
UPC #: 197163386048
Country of Origin: Mexico

Dimensions

Strike Plate Lip Length: 1 3/16 in
Door Thickness - Maximum: 2 1/2 in
Strike Plate Width: 1 1/4 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Height: 4 7/8 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Number of Pins: 6
Keyway Type: S123
Hand Orientation: Non-Handed
Performance Grade: 1
Latch Bolt/Dead Bolt: Latch Bolt
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
ANSI Grade: 1
ANSI/BHMA Finish: Satin Chromium-Plated
Voltage: 12/24V DC
Lockset Type: Mechanical
Lockset Function ANSI Code: F04
Failure Mode: Fail Safe or Fail Secure
Key Type: Keyed Different
Application: Commercial Real Estate, Hospitality, Residential, Retail
Locking/Unlocking Access - Inside: Thumb Turn
Visual Indicator Location: Inside/Outside
Fire Rating: 3 hr
Strike Type: Curved Lip
ADA Compliant: Yes
Item: Door Lockset
Key Material: Nickel Silver
Lockset Style: Playa
Mortise/Cylindrical: Mortise
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Includes Core: Core Included
Locking/Unlocking Access - Outside: Keyway
Backset: 2 3/4 in
Knob/Handle Material: Zinc
Includes: Dust Box
Ligature-Resistant: Not Ligature-Resistant
Cylinder Core Type: Conventional Core Cylinder
Visual Indicator Message: No Message

Description

Door Lockset,12/24V DC,Mortise
