- MFR #
- PM050P PLAN 626
- Zoro #
- G223524823
- UPC #
- 197163386086
- Country of Origin
- Mexico
- Item

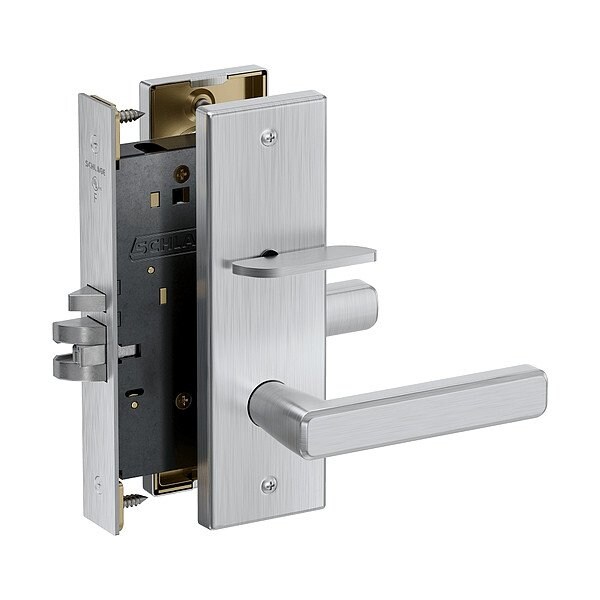

- Door Lockset
- Voltage
- 12/24V DC
- Latch Bolt/Dead Bolt
- Latch Bolt
- Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
- Key Material
- Nickel Silver
- Lockset Function ANSI Code
- F04
- Keyway Type
- S123
- Visual Indicator Location
- Inside/Outside
- Application
- Commercial Real Estate, Hospitality, Residential, Retail
- Standards
- ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
- Backset
- 2 3/4 in
- Mortise/Cylindrical
- Mortise
- Includes
- Dust Box
- ADA Compliant
- Yes
- Locking/Unlocking Access - Outside
- Keyway
- Failure Mode
- Fail Safe or Fail Secure
- Number of Pins
- 6
- Lockset Style
- Playa
- Performance Grade
- 1
- Strike Type
- Curved Lip
- Hand Orientation
- Non-Handed
- Locking/Unlocking Access - Inside
- Thumb Turn
- Includes Core
- Core Included
- Lockset Type
- Mechanical
- Knob/Handle Material
- Zinc
- ANSI/BHMA Finish
- Satin Chromium-Plated
- Fire Rating
- 3 hr
- ANSI Grade
- 1
- Key Type
- Keyed Different
- Visual Indicator Message
- No Message
- Ligature-Resistant
- Not Ligature-Resistant
- Cylinder Core Type
- Conventional Core Cylinder
