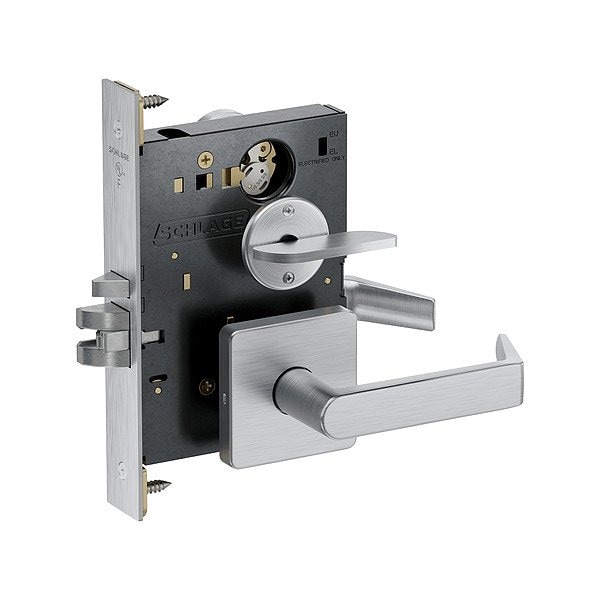

Door Lockset, 12/24V DC, Mortise

Mfr # PM050P RHOD 626
Zoro # G923524109

585.99

Free Shipping & Returns

Key Features

Knob/Handle Material

Zinc

Performance Grade

ANSI Grade

Standards

ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed

Includes

Dust Box

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM050P RHOD 626
Zoro #: G923524109
UPC #: 197163386123
Country of Origin: Mexico

Dimensions

Strike Plate Width: 1 1/4 in
Door Thickness - Maximum: 2 1/2 in
Strike Plate Height: 4 7/8 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Lip Length: 1 3/16 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Knob/Handle Material: Zinc
Item: Door Lockset
Performance Grade: 1
ANSI Grade: 1
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Includes: Dust Box
Lockset Type: Mechanical
Hand Orientation: Non-Handed
Keyway Type: S123
ADA Compliant: Yes
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Mortise/Cylindrical: Mortise
Number of Pins: 6
Visual Indicator Location: Inside/Outside
Failure Mode: Fail Safe or Fail Secure
Strike Type: Curved Lip
Key Type: Keyed Different
Locking/Unlocking Access - Outside: Keyway
Locking/Unlocking Access - Inside: Thumb Turn
Lockset Style: Rhodes
ANSI/BHMA Finish: Satin Chromium-Plated
Application: Commercial Real Estate, Hospitality, Residential, Retail
Includes Core: Core Included
Key Material: Nickel Silver
Fire Rating: 3 hr
Voltage: 12/24V DC
Lockset Function ANSI Code: F04
Backset: 2 3/4 in
Latch Bolt/Dead Bolt: Latch Bolt
Ligature-Resistant: Not Ligature-Resistant
Cylinder Core Type: Conventional Core Cylinder
Visual Indicator Message: No Message

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
