Shop SCHLAGE

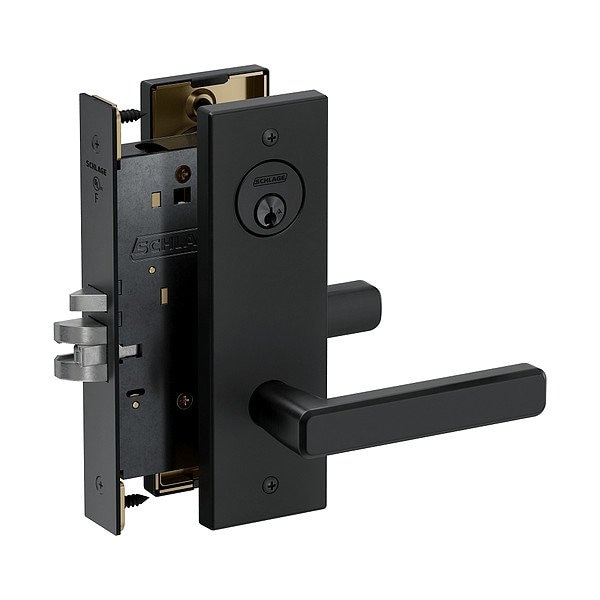

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM060P PLAN 622

  • Zoro # G823524971

product price:
$
823.99
/ea
Free Shipping & Returns

Key Features

Includes Core
Core Included
Application
Commercial Real Estate, Hospitality, Residential, Retail
Locking/Unlocking Access - Inside
Not Lockable
ANSI/BHMA Finish
Black Painted
Keyway Type
S123
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM060P PLAN 622
Zoro #
G823524971
UPC #
197163386550
Country of Origin
Mexico

Dimensions

Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 1/2 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in
Strike Plate Lip Length
1 3/16 in

Details

Includes Core
Core Included
Application
Commercial Real Estate, Hospitality, Residential, Retail
Locking/Unlocking Access - Inside
Not Lockable
ANSI/BHMA Finish
Black Painted
Keyway Type
S123
Lockset Function ANSI Code
F09
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Lockset Type
Mechanical
Voltage
12/24V DC
Mortise/Cylindrical
Mortise
Number of Pins
6
Item
Door Lockset
Lockset Style
Playa
Failure Mode
Fail Safe or Fail Secure
Key Type
Keyed Different
Visual Indicator Location
Inside/Outside
Key Material
Nickel Silver
Includes
Dust Box
Performance Grade
1
ADA Compliant
Yes
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Hand Orientation
Non-Handed
Knob/Handle Material
Zinc
Strike Type
Curved Lip
ANSI Grade
1
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Latch Bolt
Backset
2 3/4 in
Locking/Unlocking Access - Outside
Keyway
Cylinder Core Type
Conventional Core Cylinder
Visual Indicator Message
No Message
Ligature-Resistant
Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise

Restrictions
