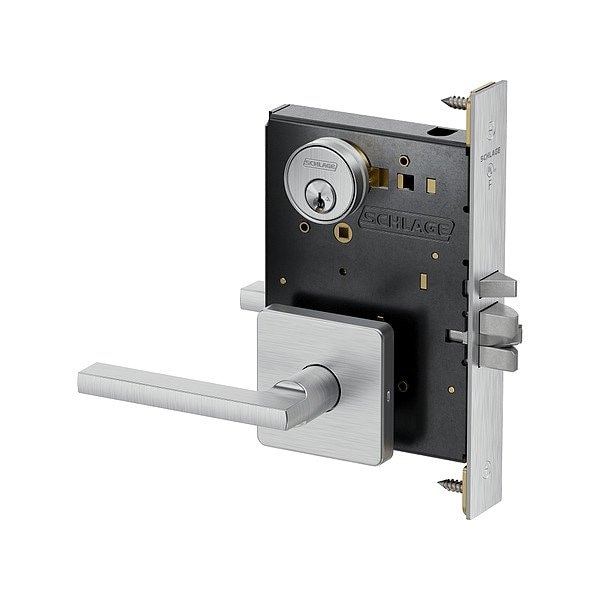

Door Lockset, 12/24V DC, Mortise

Mfr # PM080P LATD 626
Zoro # G823524407

585.99

Free Shipping & Returns

Key Features

Mortise/Cylindrical

Mortise

Door Thickness - Minimum

1 3/8 in

Includes Core

Core Included

Includes

Dust Box

Key Material

Nickel Silver

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM080P LATD 626
Zoro #: G823524407
UPC #: 197163386727
Country of Origin: Mexico

Dimensions

Door Thickness - Minimum: 1 3/8 in
Strike Plate Height: 4 7/8 in
Door Thickness - Maximum: 2 1/2 in
Strike Plate Lip Length: 1 3/16 in
Strike Plate Width: 1 1/4 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Mortise/Cylindrical: Mortise
Item: Door Lockset
Includes Core: Core Included
Includes: Dust Box
Key Material: Nickel Silver
Locking/Unlocking Access - Outside: Keyway
Locking/Unlocking Access - Inside: Not Lockable
Fire Rating: 3 hr
ANSI Grade: 1
Latch Bolt/Dead Bolt: Dead Bolt
Number of Pins: 6
Failure Mode: Fail Safe or Fail Secure
Visual Indicator Location: Inside/Outside
ANSI/BHMA Finish: Satin Chromium-Plated
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Application: Commercial Real Estate, Hospitality, Residential, Retail
Strike Type: Curved Lip
Performance Grade: 1
ADA Compliant: Yes
Keyway Type: S123
Voltage: 12/24V DC
Key Type: Keyed Different
Backset: 2 3/4 in
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Hand Orientation: Non-Handed
Lockset Type: Mechanical
Lockset Function ANSI Code: F07
Lockset Style: Latitude
Knob/Handle Material: Zinc
Ligature-Resistant: Not Ligature-Resistant
Visual Indicator Message: No Message
Cylinder Core Type: Conventional Core Cylinder

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
