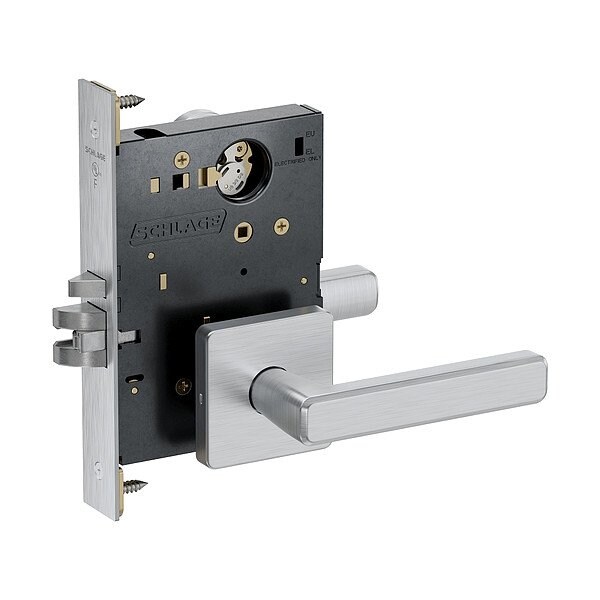

Door Lockset, 12/24V DC, Mortise

Mfr # PM080P PLAD 626
Zoro # G023522791

585.99

Free Shipping & Returns

Key Features

Hand Orientation

Non-Handed

Keyway Type

S123

Visual Indicator Location

Inside/Outside

Knob/Handle Material

Zinc

Locking/Unlocking Access - Inside

Not Lockable

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM080P PLAD 626
Zoro #: G023522791
UPC #: 197163386789
Country of Origin: Mexico

Dimensions

Strike Plate Width: 1 1/4 in
Strike Plate Height: 4 7/8 in
Door Thickness - Maximum: 2 1/2 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Lip Length: 1 3/16 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Hand Orientation: Non-Handed
Keyway Type: S123
Visual Indicator Location: Inside/Outside
Knob/Handle Material: Zinc
Locking/Unlocking Access - Inside: Not Lockable
Key Type: Keyed Different
Latch Bolt/Dead Bolt: Dead Bolt
Backset: 2 3/4 in
Includes Core: Core Included
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Mortise/Cylindrical: Mortise
Fire Rating: 3 hr
Lockset Function ANSI Code: F07
ADA Compliant: Yes
Number of Pins: 6
Strike Type: Curved Lip
Includes: Dust Box
Voltage: 12/24V DC
ANSI Grade: 1
Lockset Type: Mechanical
Locking/Unlocking Access - Outside: Keyway
Lockset Style: Playa
Application: Commercial Real Estate, Hospitality, Residential, Retail
Performance Grade: 1
Item: Door Lockset
Key Material: Nickel Silver
Failure Mode: Fail Safe or Fail Secure
ANSI/BHMA Finish: Satin Chromium-Plated
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Cylinder Core Type: Conventional Core Cylinder
Ligature-Resistant: Not Ligature-Resistant
Visual Indicator Message: No Message

Description

Door Lockset,12/24V DC,Mortise
