Shop SCHLAGE

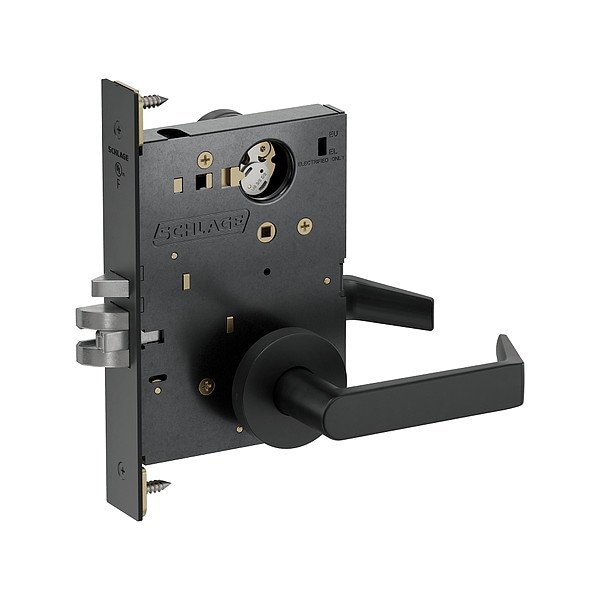

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM080P RHOA 622

  • Zoro # G123523841

product price:
$
585.99
/ea
Free Shipping & Returns

Key Features

Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Keyway
ANSI Grade
1
Includes
Dust Box
Performance Grade
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM080P RHOA 622
Zoro #
G123523841
UPC #
197163386819
Country of Origin
Mexico

Dimensions

Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 1/2 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 3/16 in

Details

Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Keyway
ANSI Grade
1
Includes
Dust Box
Performance Grade
1
Mortise/Cylindrical
Mortise
Lockset Type
Mechanical
Key Type
Keyed Different
Backset
2 3/4 in
Lockset Style
Rhodes
Failure Mode
Fail Safe or Fail Secure
Includes Core
Core Included
Application
Commercial Real Estate, Hospitality, Residential, Retail
ADA Compliant
Yes
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Latch Bolt/Dead Bolt
Dead Bolt
Knob/Handle Material
Zinc
Keyway Type
S123
Lockset Function ANSI Code
F07
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Black Painted
Fire Rating
3 hr
Voltage
12/24V DC
Number of Pins
6
Key Material
Nickel Silver
Visual Indicator Location
Inside/Outside
Strike Type
Curved Lip
Item
Door Lockset
Cylinder Core Type
Conventional Core Cylinder
Ligature-Resistant
Not Ligature-Resistant
Visual Indicator Message
No Message

Description

Door Lockset,12/24V DC,Mortise

Restrictions
