Shop SCHLAGE

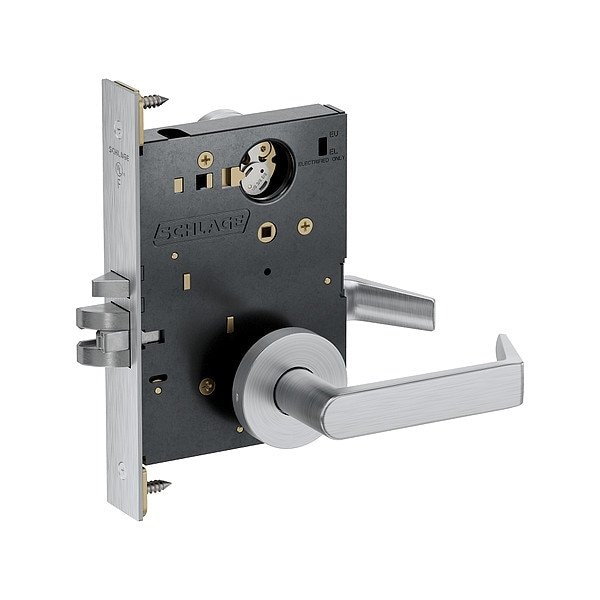

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM080P RHOA 626

  • Zoro # G823525176

product price:
$
585.99
/ea
Free Shipping & Returns

Key Features

Latch Bolt/Dead Bolt
Dead Bolt
Fire Rating
3 hr
ADA Compliant
Yes
Strike Plate Lip Length
1 3/16 in
Lockset Style
Rhodes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM080P RHOA 626
Zoro #
G823525176
UPC #
197163386826
Country of Origin
Mexico

Dimensions

Strike Plate Lip Length
1 3/16 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 1/2 in

Details

Latch Bolt/Dead Bolt
Dead Bolt
Fire Rating
3 hr
ADA Compliant
Yes
Lockset Style
Rhodes
Key Type
Keyed Different
Keyway Type
S123
Failure Mode
Fail Safe or Fail Secure
Lockset Type
Mechanical
Number of Pins
6
Mortise/Cylindrical
Mortise
Locking/Unlocking Access - Outside
Keyway
Locking/Unlocking Access - Inside
Not Lockable
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F07
Application
Commercial Real Estate, Hospitality, Residential, Retail
Backset
2 3/4 in
ANSI Grade
1
Item
Door Lockset
Voltage
12/24V DC
ANSI/BHMA Finish
Satin Chromium-Plated
Includes
Dust Box
Includes Core
Core Included
Key Material
Nickel Silver
Performance Grade
1
Knob/Handle Material
Zinc
Visual Indicator Location
Inside/Outside
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Strike Type
Curved Lip
Visual Indicator Message
No Message
Ligature-Resistant
Not Ligature-Resistant
Cylinder Core Type
Conventional Core Cylinder

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
