Shop SCHLAGE

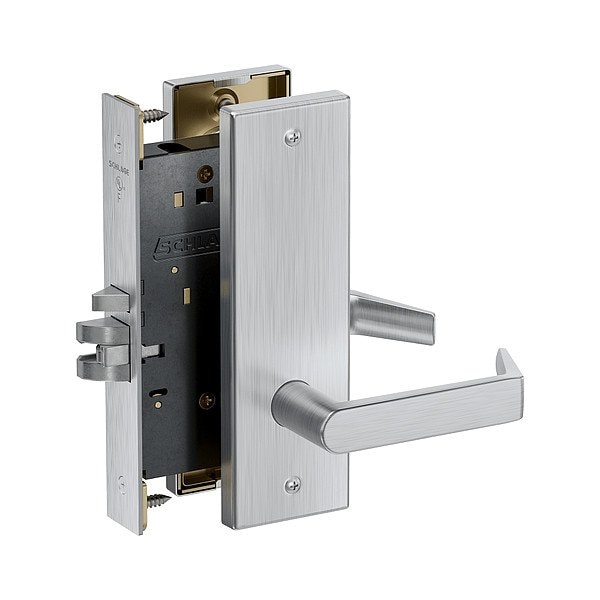

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM080P RHON 626

  • Zoro # G323523511

product price:
$
603.99
/ea
Free Shipping & Returns

Key Features

Application
Commercial Real Estate, Hospitality, Residential, Retail
Key Material
Nickel Silver
Mortise/Cylindrical
Mortise
Voltage
12/24V DC
ANSI Grade
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM080P RHON 626
Zoro #
G323523511
UPC #
197163386864
Country of Origin
Mexico

Dimensions

Strike Plate Width
1 1/4 in
Strike Plate Lip Length
1 3/16 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 1/2 in

Details

Application
Commercial Real Estate, Hospitality, Residential, Retail
Key Material
Nickel Silver
Mortise/Cylindrical
Mortise
Voltage
12/24V DC
ANSI Grade
1
Visual Indicator Location
Inside/Outside
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F07
Number of Pins
6
Fire Rating
3 hr
Knob/Handle Material
Zinc
Latch Bolt/Dead Bolt
Dead Bolt
Includes
Dust Box
ANSI/BHMA Finish
Satin Chromium-Plated
Keyway Type
S123
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
Rhodes
Performance Grade
1
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
ADA Compliant
Yes
Failure Mode
Fail Safe or Fail Secure
Includes Core
Core Included
Item
Door Lockset
Key Type
Keyed Different
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Lockset Type
Mechanical
Backset
2 3/4 in
Locking/Unlocking Access - Outside
Keyway
Strike Type
Curved Lip
Visual Indicator Message
No Message
Cylinder Core Type
Conventional Core Cylinder
Ligature-Resistant
Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
