Shop SCHLAGE

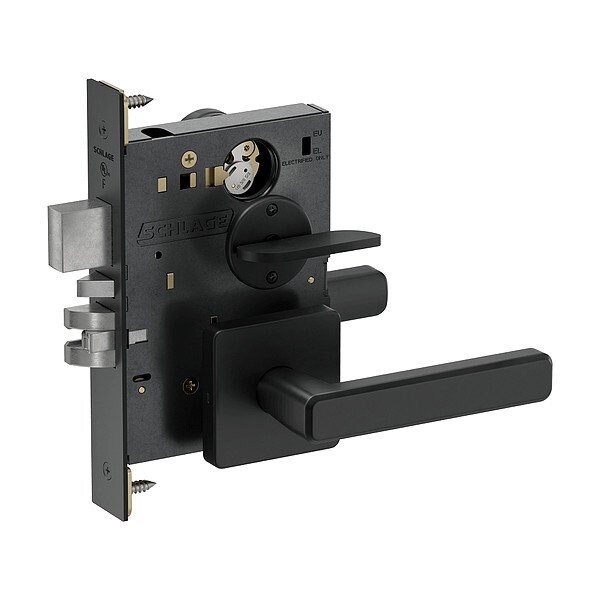

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM453P PLAD 622

  • Zoro # G323524945

product price:
$
615.99
/ea
Free Shipping & Returns

Key Features

Key Type
Keyed Different
Fire Rating
3 hr
ANSI/BHMA Finish
Black Painted
Includes
Dust Box
Performance Grade
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM453P PLAD 622
Zoro #
G323524945
UPC #
197163387250
Country of Origin
Mexico

Dimensions

Door Thickness - Maximum
2 1/2 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 3/16 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in

Details

Key Type
Keyed Different
Fire Rating
3 hr
ANSI/BHMA Finish
Black Painted
Includes
Dust Box
Performance Grade
1
ANSI Grade
1
Item
Door Lockset
ADA Compliant
Yes
Application
Commercial Real Estate, Hospitality, Residential, Retail
Visual Indicator Location
Inside/Outside
Backset
2 3/4 in
Lockset Style
Playa
Number of Pins
6
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Latch Bolt/Dead Bolt
Dead Bolt
Key Material
Nickel Silver
Hand Orientation
Non-Handed
Mortise/Cylindrical
Mortise
Voltage
12/24V DC
Locking/Unlocking Access - Outside
Keyway
Includes Core
Core Included
Locking/Unlocking Access - Inside
Thumb Turn
Knob/Handle Material
Zinc
Failure Mode
Fail Safe or Fail Secure
Strike Type
Curved Lip
Lockset Function ANSI Code
F20
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Lockset Type
Mechanical
Keyway Type
S123
Visual Indicator Message
No Message
Cylinder Core Type
Conventional Core Cylinder
Ligature-Resistant
Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise
