- MFR #
- PM453P PLAN 622
- Zoro #
- G523523397
- UPC #
- 197163387274
- Country of Origin
- Mexico
- Locking/Unlocking Access - Outside
- Keyway
- Failure Mode
- Fail Safe or Fail Secure
- Visual Indicator Location
- Inside/Outside
- Lockset Function ANSI Code
- F20
- Item

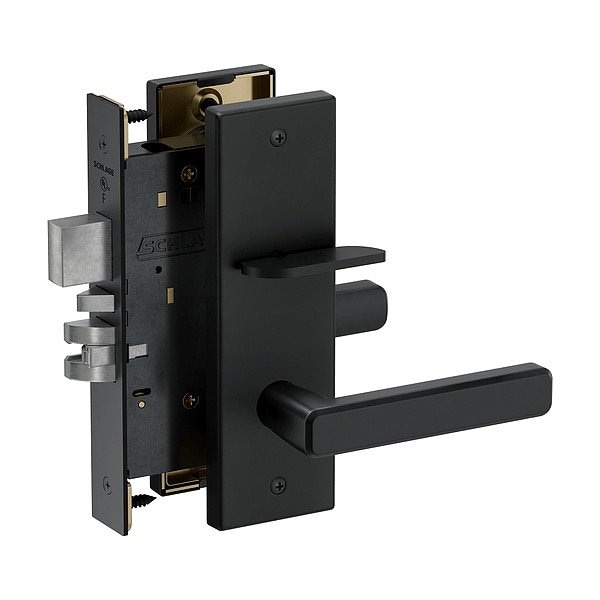

- Door Lockset
- Knob/Handle Material
- Zinc
- ANSI/BHMA Finish
- Black Painted
- Mortise/Cylindrical
- Mortise
- Includes Core
- Core Included
- ANSI Grade
- 1
- Includes
- Dust Box
- Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
- Voltage
- 12/24V DC
- Backset
- 2 3/4 in
- Locking/Unlocking Access - Inside
- Thumb Turn
- Application
- Commercial Real Estate, Hospitality, Residential, Retail
- Key Type
- Keyed Different
- Fire Rating
- 3 hr
- Lockset Style
- Playa
- Keyway Type
- S123
- Performance Grade
- 1
- Number of Pins
- 6
- Lockset Type
- Mechanical
- Hand Orientation
- Non-Handed
- Latch Bolt/Dead Bolt
- Dead Bolt
- Key Material
- Nickel Silver
- ADA Compliant
- Yes
- Strike Type
- Curved Lip
- Standards
- ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
- Visual Indicator Message
- No Message
- Cylinder Core Type
- Conventional Core Cylinder
- Ligature-Resistant
- Not Ligature-Resistant
