  11. Magnetc Stripe Reader w/Keypad, 4-5/16inH

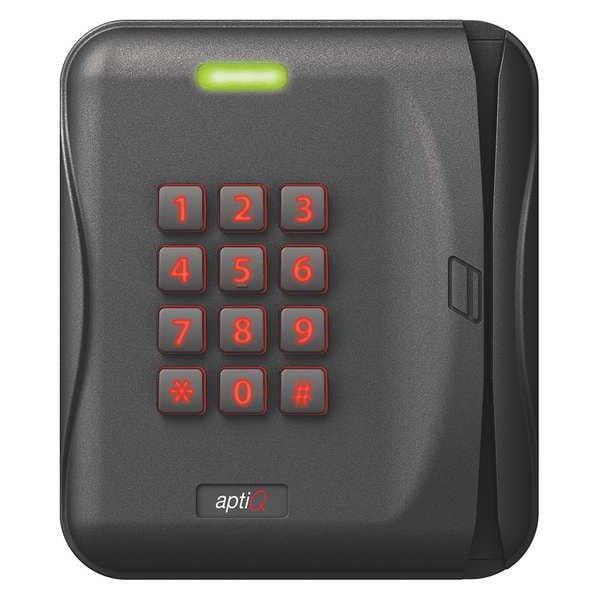

Schlage Electronics Magnetc Stripe Reader w/Keypad, 4-5/16inH MTMSK15 - main

Magnetc Stripe Reader w/Keypad, 4-5/16inH

  • Mfr # MTMSK15

  • Zoro # G0084467

product price: $855.99
/ea
Free Shipping & Returns

Key Features

Series
aptiQ
Access Type
Keypad
Case Material
PBT Polymer
For Use With
Magnetic Stripe (Tracks 1, 2, or 3), Schlage Proximity, XceedID(R) Proximity, HID(R) Proximity, GE/CASI ProxLite(R), AWID(R) Proximity, LenelProx(R), Schlage MIFARE(R), XceedID MIFARE(R), AptiQmobile, AptiQ Smart Cards, Using MIFARE(R), AptiQ Smart Cards Using MIFARE, DESFireTM EV1, DESFire(R) CSN, HID iClass(R) CSN, Inside Contactless PicoTag(R) CSN, ST Microelectronics(R) CSN, Texas Instruments, Tag-It(R) CSN, Phillips I-Code(R) CSN
Height
4 5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MTMSK15
Zoro #
G0084467
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 5/16 in
Width
5 11/64 in
Depth
1 5/32 in
Overall Height
4 7/16 in
Overall Width
5 3/16 in
Overall Depth
1 1/8 in

Details

Item
Keyless Access Control Keypad
Series
aptiQ
Access Type
Keypad
Case Material
PBT Polymer
For Use With
Magnetic Stripe (Tracks 1, 2, or 3), Schlage Proximity, XceedID(R) Proximity, HID(R) Proximity, GE/CASI ProxLite(R), AWID(R) Proximity, LenelProx(R), Schlage MIFARE(R), XceedID MIFARE(R), AptiQmobile, AptiQ Smart Cards, Using MIFARE(R), AptiQ Smart Cards Using MIFARE, DESFireTM EV1, DESFire(R) CSN, HID iClass(R) CSN, Inside Contactless PicoTag(R) CSN, ST Microelectronics(R) CSN, Texas Instruments, Tag-It(R) CSN, Phillips I-Code(R) CSN
Number of Keys
12
Includes
Cards, Fobs, Quick-Connect Cable, Tags, Wristbands
Power Required
5/16V DC
Standards
14443B, 15693, ISO 14443A
Operating Temp. Range
-40 Degrees to 158 Degrees F
Max. Proximity Range
5 in
Interface
Wiegand
Voltage
5 to 15V DC
Color
Black
Features
Accommodates Interior, Exterior, Metal and Non-Metal Installation Environments, Limited Lifetime Warranty, Pair Keypad use Such as Card + Pin, Reads 125 KHz Proximity and 13.56 MHz Smart Credentials
Application
Door
Compatible Product Type
AWID Proximity, DESFire CSN, GE/CASI ProxLite, HID iCLASS CSN, HID Proximity, Inside Contactless, LenelProx, Phillips I-Code CSN, PicoTag CSN, Schlage MIFARE Classic, Schlage MIFARE DESFire, Schlage MIFARE Plus, Schlage Proximity, ST Microelectronics CSN, Tag-It CSN, Texas Instruments
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Proximity Distance - Maximum
5 in
Includes Hardware
Hardware Included

Description

Keyless Access Control Keypad, Access Type Keypad, Interface Wiegand, Case Material PBT Polymer, Series aptiQ, Height 4 5/16 in, Width 5 11/64 in, Depth 1 5/32 in, Number of Keys 12, Power Required 5/16V DC, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Proximity Range 5 in, Standards 14443B, 15693, ISO 14443A
