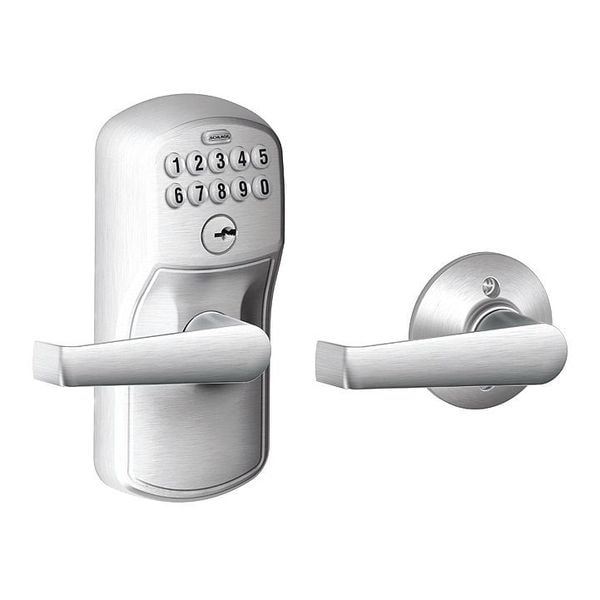

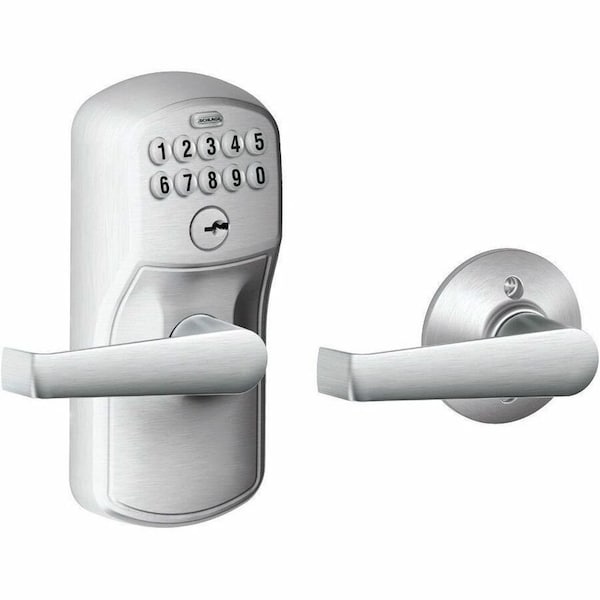

Keypad Entry Autolock, FE575Series, 4Users

  • Mfr # FE575 PLY626ELA

  • Zoro # G9187053


product price: $244.99
/ea
Free Shipping & Returns

Key Features

Series
FE575
Handle Type
Lever
Max. User Codes
4
Door Thickness
1-3/8 in to 1-3/4 in
Function
Classroom with Key Override
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FE575 PLY626ELA
Zoro #
G9187053
UPC #
640671851633
Country of Origin
United States

Dimensions

Door Thickness
1-3/8 in to 1-3/4 in
Outside Width
3 1/9 in
Outside Height
6 3/4 in
Outside Depth
2 3/4 in
Overall Width
6 13/16 in
Overall Height
6 7/8 in
Overall Depth
3 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in

Details

Item
Electronic Keyless Lock
Series
FE575
Handle Type
Lever
Max. User Codes
4
Function
Classroom with Key Override
Access Method
Keypad
Case Material
Metal
Mounting Style
Cylindrical
Lock Material
Steel
Product Type
Electronic Keyless Lock
Includes
Screw Packs
Finish
Satin Chrome
Keypad
Entry Autolock
Standards
ANSI/BHMA A156.2-2011 Grade 2
Event Audit Trail
No
Hand
Nonhanded
Key Override Options
5 Pin Tumbler C Keyway
Backset
2 3/8 in, 2 3/4 in
Battery Life
Up to 2 yr
Weather Resistant
Yes
Electrical/Mechanical
Electrical
Grade
Carbide(P40)
Timed Entry Allowance
5 sec
Power Source
9V Battery
Voltage
9 V
Location Type
Multiple Family Residential
Material
Steel
Type
Battery Powered
Strike Type
Deadbolt
User Codes - Maximum
19
Lockset Handle Type
Lever
Operation Type
Push Button
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Function
Basement Stairways, Closet, Storeroom, Utility
Lockset Material
Metal
Cylinder Core Type
Conventional Core Cylinder
Temperature - Minimum
14 Degrees F
Lockset Type
Electrical/Mechanical
Temperature - Maximum
122 Degrees F
Hand Orientation
Non-Handed
Includes Hardware
Hardware Included
ANSI Grade
2

Description

Electronic Keyless Lock, Function Classroom with Key Override, Access Method Keypad, Mounting Style Cylindrical, Lock Material Steel, Finish Satin Chrome, Series FE575, Handle Type Lever, Door Thickness 1-3/8 in to 1-3/4 in, Key Override Options 5 Pin Tumbler C Keyway, Hand Nonhanded, Outside Height 6 3/4 in, Outside Width 3 1/9 in, Outside Depth 2 3/4 in, Power Source 9V Battery, Battery Life Up to 2 yr, Max. User Codes 4, Grade Residential, Standards ANSI/BHMA A156.2-2011 Grade 2
