  13. Knob Lockset, Mechanical, Passage, Grd. 1

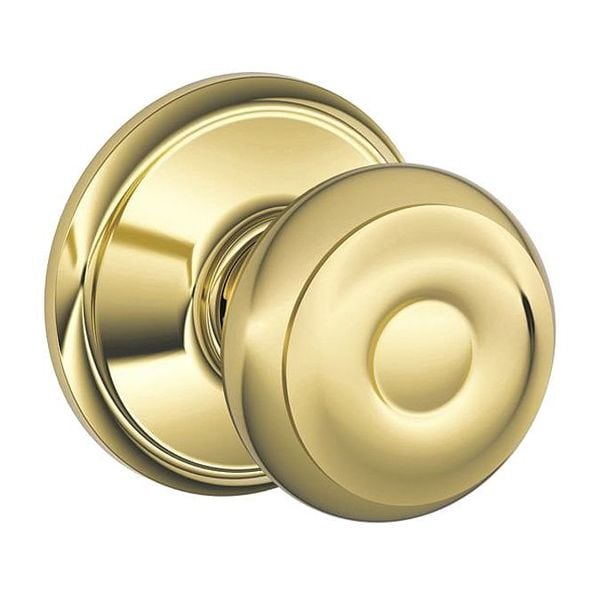

Schlage Knob Lockset, Mechanical, Passage, Grd. 1 F10 GEO 605 - main

Knob Lockset, Mechanical, Passage, Grd. 1

  • Mfr # F10 GEO 605

  • Zoro # G1596625

product price: $24.79
/ea

Key Features

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Knob
Lockset Finish
Bright Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F10 GEO 605
Zoro #
G1596625
UPC #
043156988167
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/8 in and 1-3/4 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 5/8 in
Strike Plate Height
2 1/4 in

Details

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Knob
Lockset Finish
Bright Brass
Standards
ANSI/BHMA A156.2-2011, ANSI/BHMA A156.39-2015, UL Listed
ADA Compliant
No
Lockset Fire Rating
Not Rated
Style
F Georgian
For Use With
Residential/Light Commercial Applications
Ligature Resistant
No
Strike Dim.
1-5/8 in x 2-1/4 in
Backset
2 3/8 in
Electrical/Mechanical
Mechanical
Series
F
Includes
Latch, Strike
Strike Type
Full Lip, Round Corner
Item
Door Lockset
Features
Lifetime Finish and Mechanical Guarantee (Oil-Rubbed Bronze is Only a Mechanical Guarantee), Self-Aligning Screw Holes, Universal Latch
Mortise/Cylindrical
Cylindrical
Application
Multiple Family Residential
ANSI/BHMA Finish
Bright Brass, Clear Coated
Locking/Unlocking Access - Outside
Not Lockable
Locking/Unlocking Access - Inside
Not Lockable
Knob/Handle Material
Brass
Latch Bolt/Dead Bolt
Spring Latch
Fire Rating
3 hr
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F75
Lockset Style
Georgian
Includes Hardware
Hardware Included
Ligature-Resistant
Not Ligature-Resistant
ANSI Grade
2
Lockset Type
Mechanical

Description

Residential Knob Lock, Lockset Function Passage, Style Georgian, Bright Brass Finish, Not Rated Fire Rated, Strike Type Round Corner Full Lip Strike, Strike Dim. 1-5/8 In. x 2-1/4 In., Grade 2, Series F, Backset 2-3/8 In. and 2-3/4 In., Required Door Thickness 1-3/8 In. and 1-3/4 In., For Use With Residential/Light Commercial Applications, Includes Strike, Latch and Mounting Hardware, Standards ANSI/BHMA A156.2, 2011
