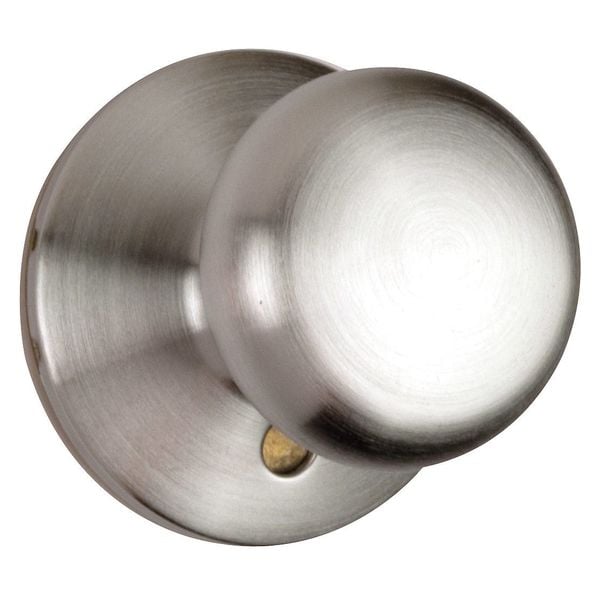

Schlage Knob Lockset, Mechanical, Passage, Grd. 2 F10 PLY 626 - main

Knob Lockset, Mechanical, Passage, Grd. 2

  • Mfr # F10 PLY 626

  • Zoro # G5046851

product price: $29.06
/ea

Key Features

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
Key Type
Not Keyed
Lockset Handle Type
Knob
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F10 PLY 626
Zoro #
G5046851
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in and 1-3/4 in
Strike Plate Width
1 5/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
2 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
Key Type
Not Keyed
Lockset Handle Type
Knob
Lockset Finish
Satin Chrome
Keyway Type
Schlage SC1
Standards
ANSI A156.2, 1996, UL Listed
ADA Compliant
No
Lockset Fire Rating
3 hr
Style
F Plymouth
Backset
2 3/8 in
Number of Keys
2
Location Type
Residential
Includes
Hardware
Strike Type
Full Lip, Round Corner
Knob Material
Brass/Steel/Zinc
Strike Dim.
1-5/8 in x 2-1/4 in
Pins
5
Series
F
Electrical/Mechanical
Mechanical
Ligature Resistant
No
Lockset Performance Strength
Light Duty
Item
Door Lockset
Number of Pins
5
Features
Lifetime Finish and Mechanical Warranty
Material
Brass/Steel/Zinc
Mortise/Cylindrical
Cylindrical
Application
Multiple Family Residential
Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Not Lockable
Performance Grade
3
Fire Rating
3 hr
Lockset Type
Mechanical
Lockset Style
Plymouth
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Function ANSI Code
F75
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Includes Hardware
Hardware Included
Knob/Handle Material
Brass, Steel, Zinc
ANSI Grade
2
Latch Bolt/Dead Bolt
Spring Latch

Description

Knob Lockset, Medium Duty, Residential, Series F, Style Plymouth, Finish Satin Chrome, Function Passage, Keyway Type C, Grade 2, Material Brass/Steel/Zinc, For Door Thickness 1-3/8 - 1-3/4 In, Backset 2-3/8, 2-3/4 In, Crossbore Size 2-1/8 In, Key Type Nickel Silver, Number of Keys 2, Pins 5, Strike Radius Corner, Full Lip, No Box, Required Door Thickness 1-3/8 - 1-3/4 In, Keying Keyed Different (KD), Standards ANSI A156.2,1996, Fire Rated 3 hr., Includes Hardware
