  13. Lever Lockset, Mechanical, Dummy, Grd. 1

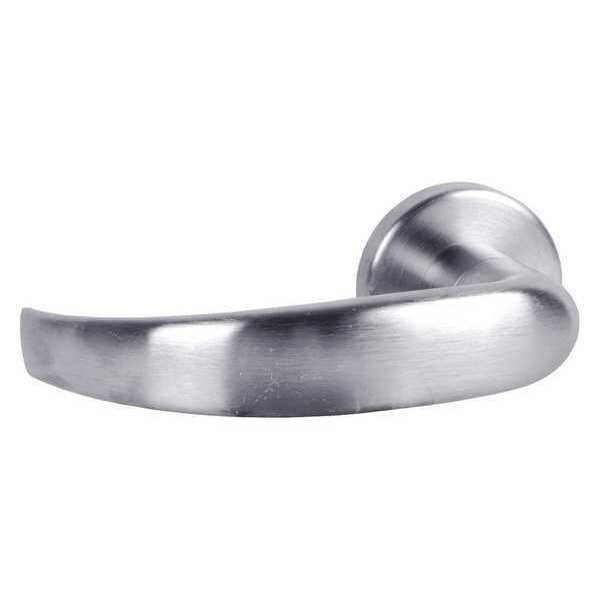

Schlage Lever Lockset, Mechanical, Dummy, Grd. 1 L0170 17A 626 - main

Lever Lockset, Mechanical, Dummy, Grd. 1

  • Mfr # L0170 17A 626

  • Zoro # G4067458

product price: $217.98
/ea
Free Shipping & Returns

Key Features

Grade
1
Finish
Satin Chrome
Series
L
Fire Rated
Not Rated
Ligature Resistant
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L0170 17A 626
Zoro #
G4067458
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/8 in to 2-1/4 in
Strike Plate Lip Length
1 3/16 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in

Details

Item
Door Lockset
Grade
1
Finish
Satin Chrome
Series
L
Fire Rated
Not Rated
Ligature Resistant
No
Lockset Handle Type
Lever
Keyway Type
None
Lockset Fire Rating
Not Rated
ADA Compliant
No
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Lockset Function
Half Dummy
Mortise / Cylindrical
Mortise
Location Type
Commercial
Electrical/Mechanical
Mechanical
Number of Keys
0
Mortise/Cylindrical
Mortise
Style
L Sparta
Lockset Grade
1
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Includes
Dust Box
For Use With
various Door Types
Keying
UnKeyed
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Strike Type
Curved Lip
Backset
2 3/4 in
Application
Commercial
Function
Dummy
Visual Indicator Message
Locked/Unlocked
Pins
0
Handle Type
Lever
ANSI Grade
1
UL Fire Rating
UL10C
ANSI/BHMA Finish
Satin Chromium-Plated
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr
Lockset Type
Mechanical
Lockset Style
L Sparta
Performance Grade
1
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Locking/Unlocking Access - Outside
Not Lockable
Failure Mode
Fail Secure
Hand Orientation
Non-Handed

Description

Half Dummy 17A Trim, Satin Chrome
