  13. Lever Lockset, Mechanical, Dummy, Grd. 1

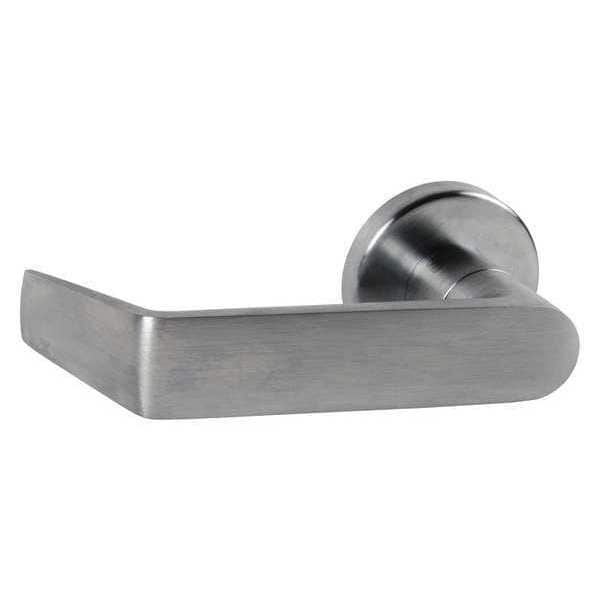

Schlage Lever Lockset, Mechanical, Dummy, Grd. 1 L0172 06A 626 - main

Lever Lockset, Mechanical, Dummy, Grd. 1

  • Mfr # L0172 06A 626

  • Zoro # G4067449

product price: $494.99
/ea
Free Shipping & Returns

Key Features

Grade
1
Finish
Satin Chrome
Series
L
Fire Rated
Not Rated
Lockset Handle Type
Lever
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L0172 06A 626
Zoro #
G4067449
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/8 in to 2-1/4 in
Strike Plate Lip Length
1 3/16 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Door Lockset
Grade
1
Finish
Satin Chrome
Series
L
Fire Rated
Not Rated
Lockset Handle Type
Lever
Location Type
Commercial
Mortise/Cylindrical
Mortise
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Mortise / Cylindrical
Mortise
For Use With
various Door Types
Keyway Type
None
Lockset Fire Rating
Not Rated
Lockset Function
Dummy
Number of Keys
0
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
ADA Compliant
No
Includes
Dust Box
Lockset Grade
1
Style
L Rhodes
Ligature Resistant
No
Electrical/Mechanical
Mechanical
Backset
2 3/4 in
Keying
UnKeyed
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Strike Type
Curved Lip
Application
Commercial
Strike
Includes
Function
Double Dummy
Visual Indicator Message
Locked/Unlocked
Handle Type
Lever
Pins
0
Hand Orientation
Non-Handed
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Not Lockable
UL Fire Rating
UL10C
Lockset Style
L Rhodes
Locking/Unlocking Access - Outside
Not Lockable
Lockset Type
Mechanical
Failure Mode
Fail Secure
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Performance Grade
1
ANSI/BHMA Finish
Satin Chromium-Plated
ANSI Grade
1

Description

Full Dummy 06A Trim, Satin Chrome
