  13. Lever Lockset, Mechanical, Passage, Grd. 1

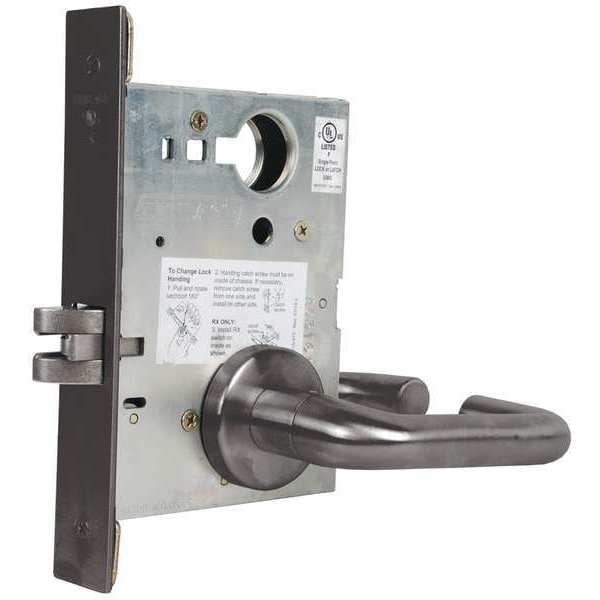

Schlage Lever Lockset, Mechanical, Passage, Grd. 1 L9010 03A 613 - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # L9010 03A 613

  • Zoro # G4067659

product price: $648.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Dust Box
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9010 03A 613
Zoro #
G4067659
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 3/16 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Dust Box
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Series
L
Style
L Tubular
Finish
Oil Rubbed Dark Bronze
ADA Compliant
No
Strike Type
Curved Lip
Ligature Resistant
No
Lockset Finish
Oil Rubbed Bronze
Item
Door Lockset
Number of Keys
0
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Strike Dim.
1-1/4 in x 4-7/8 in
Mortise / Cylindrical
Mortise
Lockset Fire Rating
Not Rated
Grade
1
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Keying
UnKeyed
Fire Rated
Not Rated
Strike
Includes
Function
Passage
Application
Commercial
Pins
0
Visual Indicator Message
Locked/Unlocked
Handle Type
Lever
Failure Mode
Fail Secure
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Ligature-Resistant
Not Ligature-Resistant
UL Fire Rating
UL10C
Lockset Function ANSI Code
F01
Lockset Type
Mechanical
Lockset Style
L Tubular
Locking/Unlocking Access - Inside
Not Lockable
ANSI Grade
1
Locking/Unlocking Access - Outside
Not Lockable
Knob/Handle Material
Bronze
Performance Grade
1
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Spring Latch

Description

Passage Latch, 03A Trim, Dark Bronze
