  13. Lever Lockset, Mechanical, Passage, Grd. 1

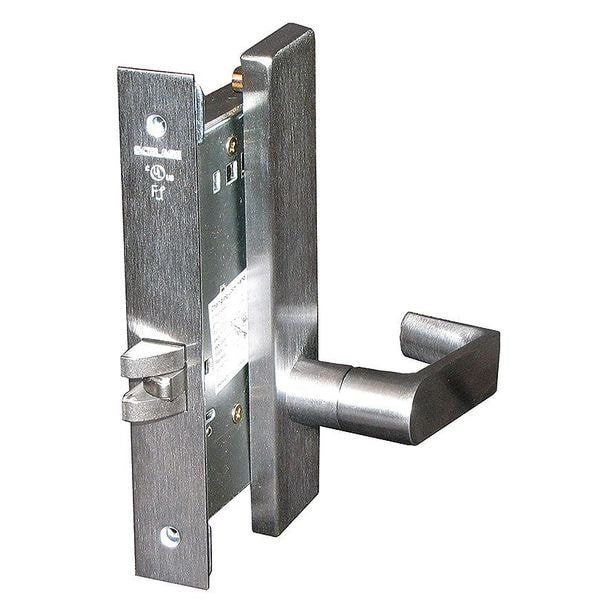

Schlage Lever Lockset, Mechanical, Passage, Grd. 1 L9010 06L 626 - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # L9010 06L 626

  • Zoro # G5050552

product price: $667.28
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Dust Box
Key Type
Not Keyed
Keyway Type
Everest C123
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9010 06L 626
Zoro #
G5050552
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in
Strike Plate Lip Length
1 3/16 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Dust Box
Key Type
Not Keyed
Keyway Type
Everest C123
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Series
L
Style
L 06L
Finish
Satin Chrome
Item
Door Lockset
Lockset Finish
Satin Chrome
ADA Compliant
No
Strike Type
Curved Lip
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Mortise
Number of Keys
2
Ligature Resistant
No
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Strike Dim.
1-1/8 in x 3-5/8 in
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Fire Rated
3 hr.
Grade
1
Keying
Keyed Different
Function
Passage
Application
Commercial
Type
Escutcheon
Strike
Square Corner
Pins
6
Material
Brass/Steel/Zinc
Visual Indicator Message
Locked/Unlocked
Case Material
Brass, Steel, Zinc
Handle Type
Lever
Hand Orientation
Non-Handed
UL Fire Rating
UL10C
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Locking/Unlocking Access - Inside
Not Lockable
Lockset Type
Mechanical
ANSI Grade
1
Latch Bolt/Dead Bolt
Spring Latch
Failure Mode
Fail Secure
Fire Rating
3 hr
Lockset Function ANSI Code
F01
Lockset Style
L Rhodes
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
1

Description

Mortise Lockset, Escutcheon, Commercial, Series L, Style 06L, Finish Satin Chrome, Function Passage, Keyway Type C123, Grade 1, Material Brass/Steel/Zinc, For Door Thickness 1-3/4 In, Backset 2-3/4 In, Crossbore Size 4 In, Key Type Nickel Silver, Number of Keys 2, Pins 6, Strike Square Corner, Required Door Thickness 1-3/4 In, Keying Keyed Different (KD), Standards ANSI/BHMA Certified A156.13-2005, Fire Rated 3 hr., Includes Hardware
