- MFR #
- L9010 07A 626
- Zoro #
- G4067561
- UPC #
- -
- Country of Origin
- Mexico
- Backset
- 2 3/4 in
- Electrical/Mechanical
- Mechanical
- For Use With
- various Door Types
- Includes
- Dust Box
- Key Type
- Not Keyed
- Keyway Type
- None
- Location Type
- Commercial
- Lockset Function
- Passage
- Lockset Grade
- 1
- Lockset Handle Type
- Lever
- Mortise/Cylindrical
- Mortise
- Series
- L
- Style
- L Athens
- Finish
- Satin Chrome

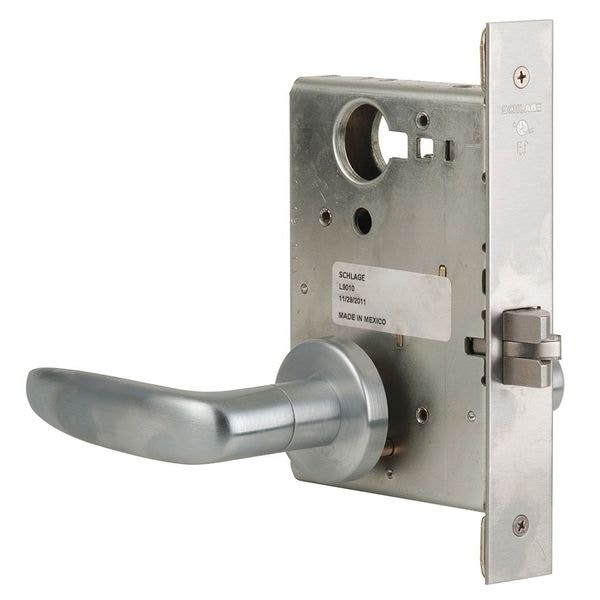

- Item
- Door Lockset
- Mortise / Cylindrical
- Mortise
- Strike Dim.
- 1-1/4 in x 4-7/8 in
- Number of Keys
- 0
- Lockset Fire Rating
- Not Rated
- Strike Type
- Curved Lip
- ADA Compliant
- No
- Standards
- ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
- Lockset Finish
- Satin Chrome
- Ligature Resistant
- No
- Features
- Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
- Fire Rated
- Not Rated
- Keying
- UnKeyed
- Grade
- 1
- Pins
- 0
- Application
- Commercial
- Function
- Passage
- Handle Type
- Lever
- Visual Indicator Message
- Locked/Unlocked
- ANSI Grade
- 1
- Lockset Type
- Mechanical
- Latch Bolt/Dead Bolt
- Spring Latch
- Locking/Unlocking Access - Outside
- Not Lockable
- Lockset Style
- L Athens
- UL Fire Rating
- UL10C
- Performance Grade
- 1
- ANSI/BHMA Finish
- Satin Chromium-Plated
- Knob/Handle Material
- Cast Stainless Steel, Forged Brass
- Locking/Unlocking Access - Inside
- Not Lockable
- Lockset Function ANSI Code
- F01
- Hand Orientation
- Non-Handed
- Ligature-Resistant
- Not Ligature-Resistant
- Failure Mode
- Fail Secure
- Fire Rating
- 3 hr
