  13. Lever Lockset, Mechanical, Storeroom, Grd.1

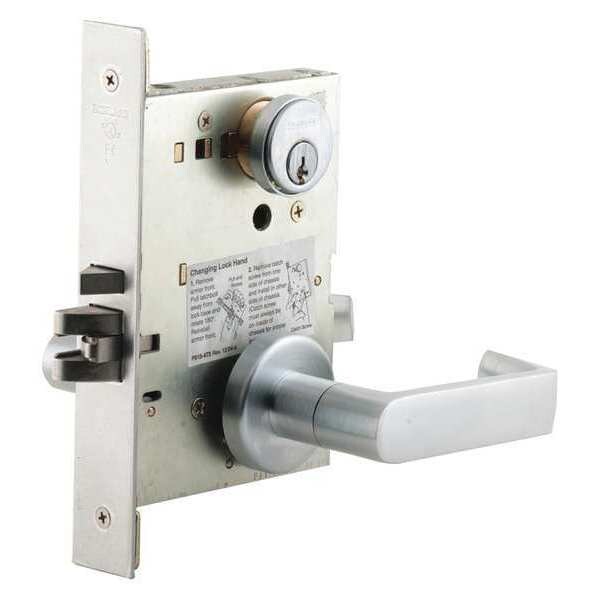

Schlage Lever Lockset, Mechanical, Storeroom, Grd.1 L9080P 06A 626 C123 - main

Lever Lockset, Mechanical, Storeroom, Grd.1

  • Mfr # L9080P 06A 626 C123

  • Zoro # G5050683

product price: $986.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Storeroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9080P 06A 626 C123
Zoro #
G5050683
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Lip Length
1 3/16 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Storeroom
Lockset Grade
1
Style
L 06A
Lockset Finish
Satin Chrome
Keyway Type
Everest C123
Key Type
Keyed Different
Series
L
Number of Keys
2
Lockset Fire Rating
3 hr
Backset
2 3/4 in
Location Type
Commercial
Ligature Resistant
No
Includes
Dust Box
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
ADA Compliant
No
Key Material
Nickel Silver
Item
Door Lockset
Strike Type
Curved Lip
Mortise/Cylindrical
Mortise
Grade
1
Finish
Satin Chrome
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Keying
Keyed Different
Fire Rated
3 hr.
Type
Rose
Cylinder Core Type
Conventional Core Cylinder
Visual Indicator Message
Locked/Unlocked
Material
Brass/Steel/Zinc
Function
Storeroom
Pins
6
Case Material
Brass, Steel, Zinc
Handle Type
Lever
Strike
Square Corner
Fire Rating
3 hr
Lockset Function ANSI Code
F07
Lockset Style
L Rhodes
ANSI/BHMA Finish
Satin Chromium-Plated
Application
Commercial
Latch Bolt/Dead Bolt
Dead Latch
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Knob/Handle Material
Cast Stainless Steel, Forged Brass
UL Fire Rating
UL10C
Failure Mode
Fail Secure
ANSI Grade
1
Locking/Unlocking Access - Outside
Keyway
Locking/Unlocking Access - Inside
Not Lockable

Description

Mortise Lockset, Rose, Commercial, Series L, Style 06A, Finish Satin Chrome, Function Storeroom, Keyway Type C123, Grade 1, Material Brass/Steel/Zinc, For Door Thickness 1-3/4 In, Backset 2-3/4 In, Crossbore Size 4 In, Key Type Nickel Silver, Number of Keys 2, Pins 6, Strike Square Corner, Required Door Thickness 1-3/4 In, Keying Keyed Different (KD), Standards ANSI/BHMA Certified A156.13-2005, Fire Rated 3 hr., Includes Hardware
