  13. Lever Lockset, Mechanical, Storeroom, Grd.1

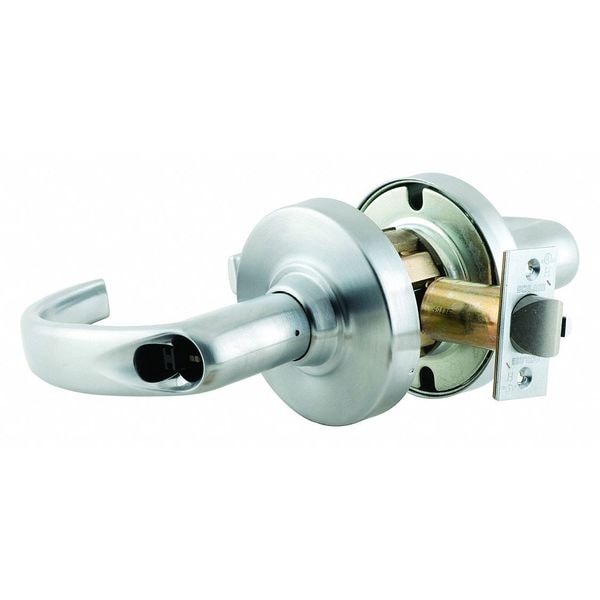

Schlage Lever Lockset, Mechanical, Storeroom, Grd.1 ND80JD SPA 626 - main

Lever Lockset, Mechanical, Storeroom, Grd.1

  • Mfr # ND80JD SPA 626

  • Zoro # G4066889

product price: $525.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ND80JD SPA 626
Zoro #
G4066889
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-5/8 in to 2-1/8 in
Strike Plate Lip Length
1 3/16 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 5/8 in
Door Thickness - Maximum
2 1/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
1
Style
ND Sparta
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
Lockset Fire Rating
Not Rated
Strike Type
Curved Lip
Backset
2 3/4 in
Mortise/Cylindrical
Cylindrical
Series
ND
Item
Door Lockset
Standards
ANSI/BHMA ANSI A156.2-2017, ASTM E330, BAA/TAA, California Fire Code, E1886, E1996, FF-H-106C Series 161, ICC Complies with ICC A117.1-2017, Miami Dade (TAS 201, 202, 203), TDI (ASTM E330, E1886, E1996), CAN/ULC S104, UL 437
Number of Keys
0
Cylinder Core Type
Full Size Interchangeable Core Cylinder
Location Type
Commercial
Handle Material
Brass
Strike Dim.
1-1/4 in x 4-7/8 in
Number of Pins
0
ADA Compliant
Yes
For Use With
various Door Types
Lockset Performance Strength
Heavy Duty
Includes
Strike
Features
Snap-On Rose
Ligature Resistant
No
Keying
Unkeyed
Grade
1
Finish
Satin Chrome
Fire Rated
Not Rated
Visual Indicator Message
No Message
Application
Commercial
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
UL Fire Rating
UL10C
Lockset Type
Mechanical
Knob/Handle Material
Cast Zinc
ANSI Grade
1
Includes Core
Core Included
Lockset Function ANSI Code
F86
Latch Bolt/Dead Bolt
Dead Latch
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Style
ND Sparta
Performance Grade
1
Hand Orientation
Non-Handed

Description

Lever Lockset,Mechanical,Storeroom,Grd.1
