  13. Deadbolt, Bright Brass / Satin Nickel

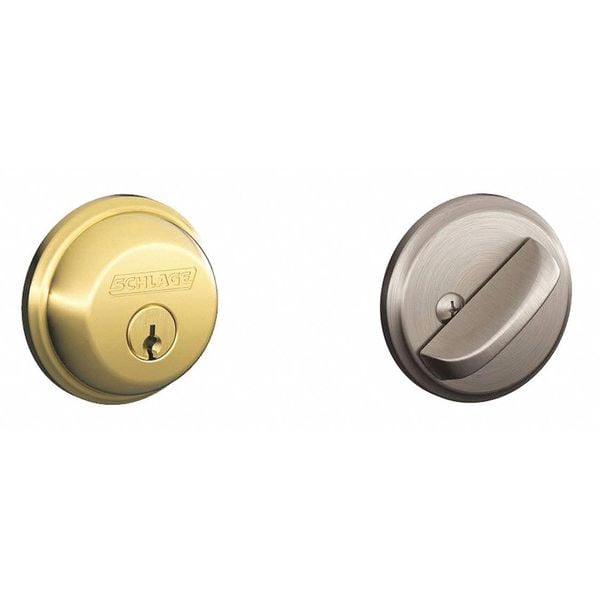

Schlage Residential Deadbolt, Bright Brass / Satin Nickel B60N 505X619 - main

Deadbolt, Bright Brass / Satin Nickel

  • Mfr # B60N 505X619

  • Zoro # G3943858

product price: $59.39
/ea

Key Features

Mortise / Cylindrical
Cylindrical
Location Type
Multi-Family, Residential
Lockset Grade
1
Series
B60N
For Door Thickness
1-3/8 in to 1-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B60N 505X619
Zoro #
G3943858
UPC #
-
Country of Origin
United States

Dimensions

For Door Thickness
1-3/8 in to 1-3/4 in
Faceplate Dimensions
1-1/8 in x 2-1/4 in
Throw Length
1 in
Faceplate Width
1 1/8 in
Door Thickness - Maximum
1 3/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Width
1 1/8 in
Faceplate Height
2 1/4 in
Strike Plate Height
2 3/4 in

Details

Mortise / Cylindrical
Cylindrical
Location Type
Multi-Family, Residential
Lockset Grade
1
Series
B60N
Lockset Finish
Bright Brass / Satin Nickel
Keyway Type
C
Key Type
Keyed Different
Standards
ANSI/BHMA A156.40-2015, UL Listed
ADA Compliant
Yes
Number of Keys
2
For Use With
Various Door Types
Material
Brass
Includes
Hardware
Pins
5
Item
Deadbolt Lock
Ligature Resistant
No
Lockset Fire Rating
3 hr
Mortise/Cylindrical
Cylindrical
Backset
2 3/8 in
Security Type
Heavy-Duty
Strike Dim.
1-1/8 in x 2-3/4 in
Cylinder
Single
Strike
Round and Square Corner
Hardware
Included
Application
Residential
Number of Pins
5
Includes Core
Core Included
Visual Indicator Message
No Message
ANSI Grade
1
Locking/Unlocking Access - Outside
Keyway
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Keyway
Includes Hardware
Hardware Included
Ligature-Resistant
Not Ligature-Resistant
ANSI/BHMA Finish
Satin Nickel-Plated, Clear Coated
Cylinder Core Type
Conventional Core Cylinder

Description

Deadbolt Lock, Cylindrical, Multi-Family, Residential, Lockset Grade 1, Series B60N, Lockset Finish Bright Brass / Satin Nickel, Keyway Type C, Key Type Keyed Different, Standards ANSI/BHMA A156.40-2015, UL Listed, ADA Compliant Yes, Lockset Fire Rating 3 hr, Backset 2 3/8 in, Ligature Resistant No, Cylinder Single, Faceplate Dimensions 1-1/8 in x 2-1/4 in, For Door Thickness 1 3/8 in to 1 3/4 in, For Use With Various Door Types, Includes Hardware, Material Brass, Number of Keys 2, Pins 5
