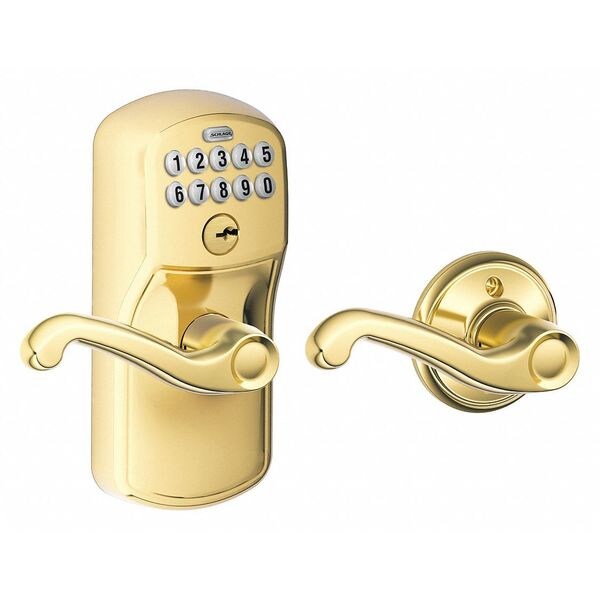

Schlage Residential Electronic Lock, Lever Handle, Brass FE575 PLY505FLA - main

Electronic Lock, Lever Handle, Brass

  • Mfr # FE575 PLY505FLA

  • Zoro # G3951792

product price: $238.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry
Key Override Options
5 Pin Tumbler C Keyway
Hand
Field Reversible
Door Thickness
1-3/8 in to 1-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FE575 PLY505FLA
Zoro #
G3951792
UPC #
-
Country of Origin
United States

Dimensions

Door Thickness
1-3/8 in to 1-3/4 in
Door Thickness - Maximum
1 3/4 in
Overall Width
6 13/16 in
Door Thickness - Minimum
1 3/8 in
Overall Height
6 7/8 in
Overall Depth
3 in

Details

Item
Electronic Keyless Lock
Handle Type
Lever
Function
Entry
Key Override Options
5 Pin Tumbler C Keyway
Hand
Field Reversible
Finish
Brass
Backset
2 3/8 in, 2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Basement Stairways, Closet, Storeroom, Utility
Case Material
Brass
Grade
2
Weather Resistant
Yes
Max. User Codes
19
Series
FE575
Event Audit Trail
No
Standards
ANSI/BHMA A156.2-2011 Grade 2
ADA Compliant
No
Access Method
Keypad
Keypad Material
Zinc
Timed Entry Allowance
5 sec
Lockset Fire Rating
Not Rated
Fire Rating
Not Rated
Includes
Flair Keypad Style, Mounting Hardware, Plymouth Trim
Lock Material
Zinc Alloy
Location Type
Multiple Family Residential
Power Source
9V Battery
Battery Life
1 to 2 yr
IP Rating
Not Rated
Number of Keys
2
Mounting Style
Cylindrical
For Use With
Various Door Types
Max. Proximity Range
At Lock
Lockset Finish
Brass
Ligature Resistant
No
Network Interface
None
Voltage
9 V
Cylinder Core Type
Conventional Core Cylinder
ANSI Grade
2
Lockset Handle Type
Lever
Lockset Type
Electrical/Mechanical
Strike Type
Deadbolt
UL Fire Rating
Not Rated
Temperature - Minimum
14 Degrees F
Includes Hardware
Hardware Included
Operation Type
Push Button
Temperature - Maximum
122 Degrees F
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Bright Brass, Clear Coated
Lockset Material
Metal
User Codes - Maximum
19

Description

Electronic Keyless Lock, Function Entry, Access Method Keypad, Mounting Style Cylindrical, Lock Material Zinc Alloy, Finish Brass, Series FE575, Handle Type Lever, Door Thickness 1-3/8 in to 1-3/4 in, Key Override Options 5 Pin Tumbler C Keyway, Hand Field Reversible, Network Interface None, Keypad Material Zinc, Power Source 9V Battery, Battery Life 1 to 2 yr, Max. User Codes 19, Fire Rating Not Rated, ADA Compliant No, Grade 2, Standards ANSI/BHMA A156.2-2011 Grade 2, Weather Resistant Yes
