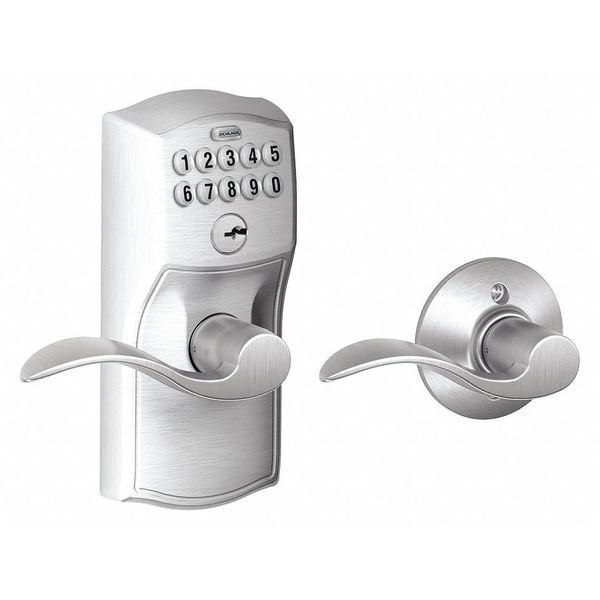

Schlage Residential Electronic Lock, Lever, Satin Chrome FE575 CAM626ACC - main

Electronic Lock, Lever, Satin Chrome

  • Mfr # FE575 CAM626ACC

  • Zoro # G3951713

product price: $651.90
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry
Key Override Options
5 Pin Tumbler C Keyway
Hand
Field Reversible
Door Thickness
1-3/8 in to 1-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FE575 CAM626ACC
Zoro #
G3951713
UPC #
-
Country of Origin
United States

Dimensions

Door Thickness
1-3/8 in to 1-3/4 in
Door Thickness - Maximum
1 3/4 in
Overall Height
6 7/8 in
Door Thickness - Minimum
1 3/8 in
Overall Width
6 13/16 in
Overall Depth
3 in

Details

Item
Electronic Keyless Lock
Handle Type
Lever
Function
Entry
Key Override Options
5 Pin Tumbler C Keyway
Hand
Field Reversible
Finish
Satin Chrome
Backset
2 3/8 in, 2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Basement Stairways, Closet, Storeroom, Utility
Case Material
Metal
Grade
2
Weather Resistant
Yes
Max. User Codes
19
Series
FE575
Max. Proximity Range
At Lock
Keypad Material
Zinc
Includes
Accent Keypad Style, Camelot Trim, Mounting Hardware
Lock Material
Zinc Alloy
Event Audit Trail
No
ADA Compliant
No
Standards
ANSI/BHMA A156.2-2011 Grade 2
Lockset Fire Rating
Not Rated
IP Rating
Not Rated
Mounting Style
Cylindrical
Number of Keys
2
Ligature Resistant
No
Access Method
Keypad
Lockset Finish
Satin Chrome
Network Interface
None
Timed Entry Allowance
5 sec
Battery Life
1 to 2 yr
Fire Rating
Not Rated
Location Type
Multiple Family Residential
For Use With
Various Door Types
Power Source
9V Battery
Voltage
9 V
ANSI/BHMA Finish
Satin Chromium-Plated
Temperature - Maximum
122 Degrees F
Includes Hardware
Hardware Included
ANSI Grade
2
Lockset Material
Metal
Operation Type
Push Button
UL Fire Rating
Not Rated
Lockset Type
Electrical/Mechanical
Hand Orientation
Non-Handed
Lockset Handle Type
Lever
User Codes - Maximum
19
Cylinder Core Type
Conventional Core Cylinder
Temperature - Minimum
14 Degrees F

Description

Electronic Keyless Lock, Function Entry, Access Method Keypad, Mounting Style Cylindrical, Lock Material Zinc Alloy, Finish Satin Chrome, Series FE575, Handle Type Lever, Door Thickness 1-3/8 in to 1-3/4 in, Key Override Options 5 Pin Tumbler C Keyway, Hand Field Reversible, Network Interface None, Keypad Material Zinc, Power Source 9V Battery, Battery Life 1 to 2 yr, Max. User Codes 19, Fire Rating Not Rated, ADA Compliant No, Grade 2, Standards ANSI/BHMA A156.2-2011 Grade 2
