  13. Schlage Mortise Storeroom Lockset, Lever, Storeroom

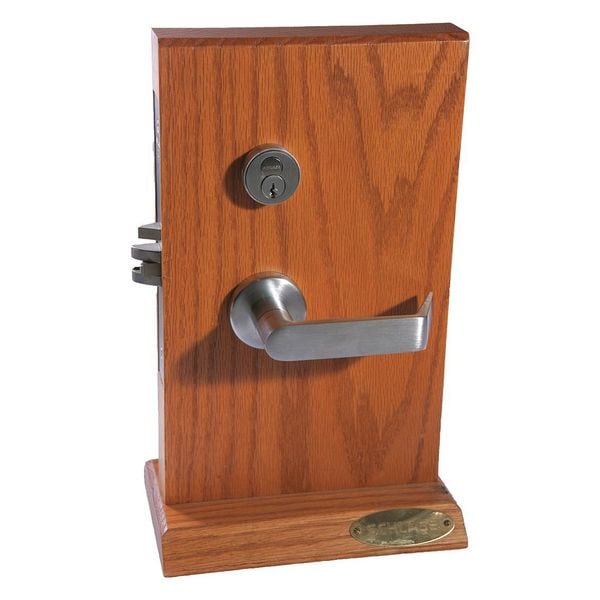

Schlage Schlage Mortise Storeroom Lockset, Lever, Storeroom L9080BD 06A 626 - main

Schlage Mortise Storeroom Lockset, Lever, Storeroom

  • Mfr # L9080BD 06A 626

  • Zoro # G0553379

product price: $792.99
/ea
Free Shipping & Returns

Key Features

Strike Type
Curved Lip
Mortise/Cylindrical
Mortise
Lockset Fire Rating
Not Rated
Lockset Function
Storeroom
Electrical/Mechanical
Mechanical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9080BD 06A 626
Zoro #
G0553379
UPC #
-
Country of Origin
Mexico

Dimensions

Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Lip Length
1 3/16 in

Details

Item
Door Lockset
Strike Type
Curved Lip
Mortise/Cylindrical
Mortise
Lockset Fire Rating
Not Rated
Lockset Function
Storeroom
Electrical/Mechanical
Mechanical
Lockset Grade
Not Graded
Ligature Resistant
No
ADA Compliant
No
Mortise / Cylindrical
Mortise
Lockset Handle Type
Lever
Includes
Dust Box
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Backset
2 3/4 in
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Visual Indicator Message
Locked/Unlocked
Lockset Function ANSI Code
F07
Fire Rating
3 hr
Application
Commercial
Includes Core
Core Included
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
L Rhodes
Failure Mode
Fail Secure
Latch Bolt/Dead Bolt
Dead Latch
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Lockset Type
Mechanical
Cylinder Core Type
Small Format Interchangeable Core Cylinder
ANSI Grade
1
Performance Grade
1
ANSI/BHMA Finish
Satin Chromium-Plated
UL Fire Rating
UL10C
Hand Orientation
Non-Handed
Locking/Unlocking Access - Outside
Keyway
Locking/Unlocking Access - Inside
Not Lockable

Description

Schlage Mortise Storeroom Lockset
