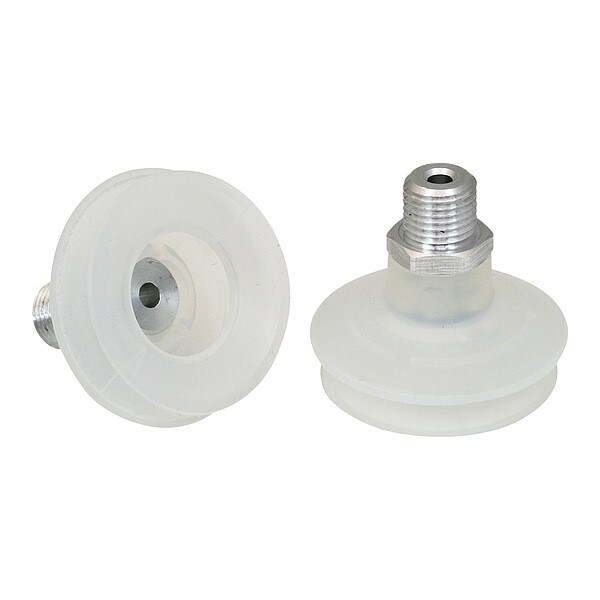

Bellow Suction Cup, 1.5
Mfr # 10.01.06.00092
Zoro # G011471285
product price:Â $29.89
/ea
Sold in multiples of 10 for $298.90
Key Features
Pad Type
Bellows
Pad Material
Food Grade Silicone Rubber
Port Size
1/4 in
Pad Height
31.6 mm
Overall Height
42.6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.06.00092
- Zoro #
- G011471285
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Port Size
- 1/4 in
- Pad Height
- 31.6 mm
- Overall Height
- 42.6 mm
- Pad Diameter
- 47.5 mm
- Outside Diameter
- 43 mm
Details
- Pad Type
- Bellows
- Pad Material
- Food Grade Silicone Rubber
- Number of Folds
- 1.5
- Maximum Vacuum Pressure
- -0.6 bar
- Series
- FSGA
- Item
- Vacuum Pad Assembly
- Stroke
- 10 mm
- Standards
- DIN ISO 3302-1 M3, FDA Approved
- Durometer
- 55 A
- Adapter Material
- Aluminum
- Hardness
- 55 Shore A
- Weight
- 19 g
- Port Type
- G
- Pad Color
- Clear
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 43 mm, Overall Height 42.6 mm, Pad Color Clear, Pad Diameter 47.5 mm, Hardness 55 Shore A, Pad Height 31.6 mm, Pad Material Food Grade Silicone Rubber, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 10 mm, Weight 19 g
