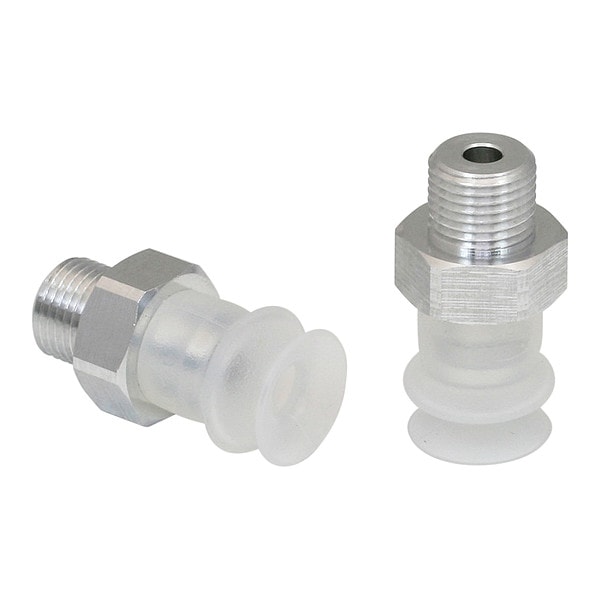

Bellow Suction Cup, 1.5
Mfr # 10.01.06.00384
Zoro # G311471268
product price: $18.49
/eaSold in multiples of 10 for $184.90
Key Features
Pad Type
Bellows
Pad Material
Silicone
Port Size
1/8 in
Pad Height
21.5 mm
Number of Folds
1.5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10.01.06.00384
Zoro #
G311471268
UPC #
-
Country of Origin
Germany
Dimensions
Port Size
1/8 in
Pad Height
21.5 mm
Pad Diameter
14.5 mm
Outside Diameter
14 mm
Overall Height
29 mm
Details
Pad Type
Bellows
Pad Material
Silicone
Item
Bellow Suction Cup, 1.5
Number of Folds
1.5
Series
FSGA
Port Type
G
Stroke
5 mm
Weight
4.8 g
Maximum Vacuum Pressure
-0.6 bar
Durometer
55 A
Hardness
55 Shore A
Standards
DIN ISO 3302-1 M3, FDA Approved
Adapter Material
Aluminum
Pad Color
Clear
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 14 mm, Overall Height 29 mm, Pad Color Clear, Pad Diameter 14.5 mm, Hardness 55 Shore A, Pad Height 21.5 mm, Pad Material Food Grade Silicone Rubber, Pad Type Bellows, Port Size 1/8 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 5 mm, Weight 4.8 g
