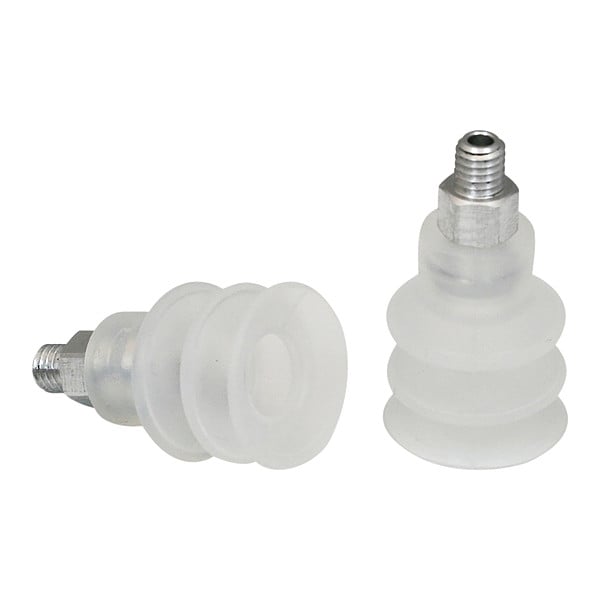

Bellow Suction Cup, 2.5
Mfr # 10.01.06.00041
Zoro # G211471498
product price: $18.15
/eaSold in multiples of 10 for $181.50
Key Features
Pad Type
Bellows
Pad Material
Silicone
Pad Height
27.6 mm
Port Size
M5
Standards
DIN ISO 3302-1 M3, FDA Approved
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10.01.06.00041
Zoro #
G211471498
UPC #
-
Country of Origin
Germany
Dimensions
Pad Height
27.6 mm
Port Size
M5
Outside Diameter
18 mm
Pad Diameter
19 mm
Overall Height
32.6 mm
Details
Pad Type
Bellows
Pad Material
Silicone
Standards
DIN ISO 3302-1 M3, FDA Approved
Stroke
9 mm
Maximum Vacuum Pressure
-0.6 bar
Number of Folds
2.5
Adapter Material
Aluminum
Port Type
Metric
Series
FSG
Weight
2.9 g
Hardness
55 Shore A
Item
Bellow Suction Cup, 2.5
Durometer
55 A
Pad Color
Clear
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 18 mm, Overall Height 32.6 mm, Pad Color Clear, Pad Diameter 19 mm, Hardness 55 Shore A, Pad Height 27.6 mm, Pad Material Food Grade Silicone Rubber, Pad Type Multi-Bellows, Port Size M5, Port Type Metric, Series FSG, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 9 mm, Weight 2.9 g
