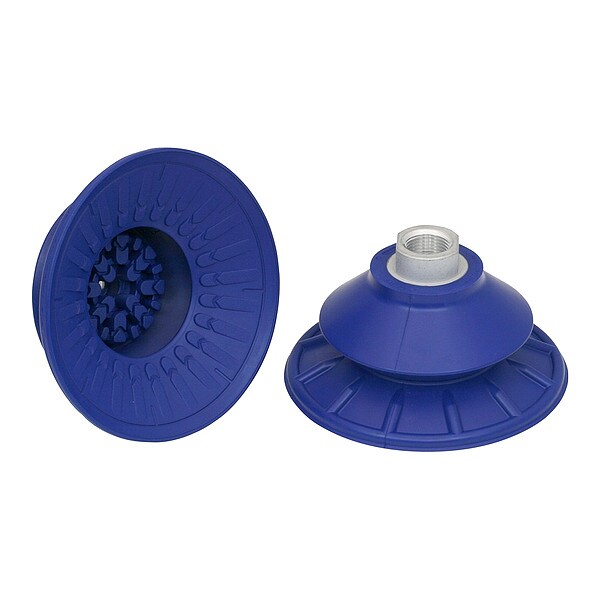

Bellow Suction cup for Sheet handling
Mfr # 10.01.06.00678
Zoro # G711854364
product price:Â $40.15
/eaKey Features
Pad Type
Bellows
Pad Material
NBR
Port Size
3/8 in
Pad Height
56.6 mm
Weight
88.2 g
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.06.00678
- Zoro #
- G711854364
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Port Size
- 3/8 in
- Pad Height
- 56.6 mm
- Pad Diameter
- 110 mm
- Overall Height
- 71.6 mm
- Outside Diameter
- 100 mm
Details
- Pad Type
- Bellows
- Pad Material
- NBR
- Weight
- 88.2 g
- Series
- SAB
- Item
- Vacuum Pad Assembly
- Stroke
- 25.8 mm
- Durometer
- 60 A
- For Use With
- Handling Sheet Metal
- Hardness
- 60 Shore A
- Adapter Material
- Aluminum
- Port Type
- G
- Pad Color
- Blue
- Standards
- DIN ISO 3302-1 M3
- Number of Folds
- 1.5
- Maximum Vacuum Pressure
- -0.6 bar
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 100 mm, Overall Height 71.6 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 56.6 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 25.8 mm, Weight 88.2 g
